KCIV-388Vertical powder packaging machine

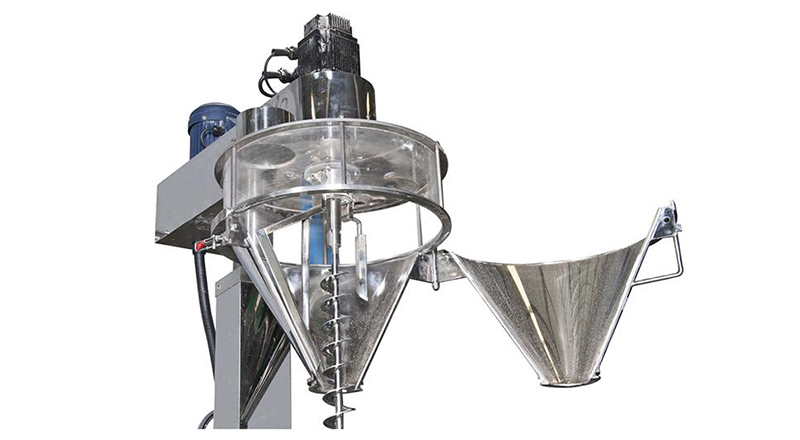

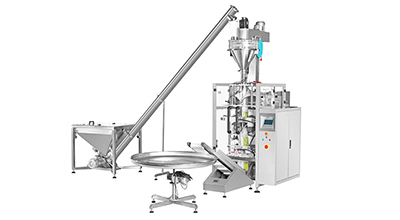

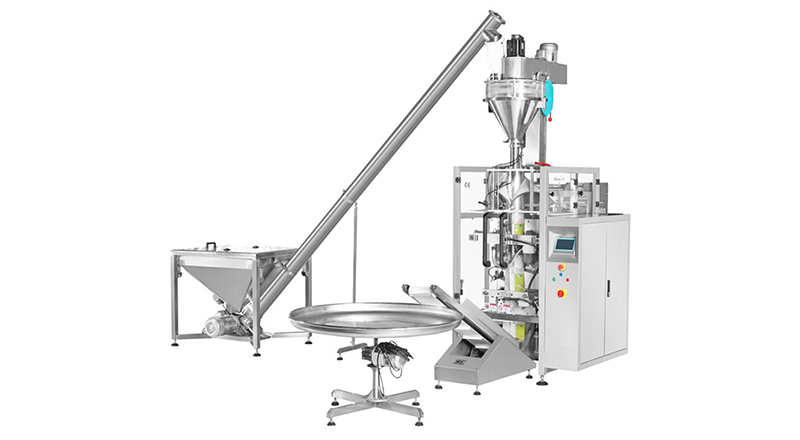

This packing line combines a vertical form fill and seal machine (VFFS), auger filling device, screw conveyor, and weighing scale to carry out packaging of powdered products such as milk powder and laundry detergent. The weighing scale is available as a multi-head weighing scale or vibratory net weighing scale according to customer requirements.

Vertical powder automatic packing machine
Vertical powder automatic packing machine
Samples
  • KCIV-388 Vertical packaging machine
  • KCIV-388 Vertical packaging machine
  • KCIV-388 Vertical packaging machine
  • KCIV-388 Vertical packaging machine
  • KCIV-388 Vertical packaging machine
  • KCIV-388 Vertical packaging machine
  • KCIV-388 Vertical packaging machine
  • KCIV-388 Vertical packaging machine
Bag types
  • KCIV-388 Vertical packaging machinePillow bag
  • KCIV-388 Vertical packaging machinePillow bag with euro hole
  • KCIV-388 Vertical packaging machinePillow bag with round hole
  • KCIV-388 Vertical packaging machineStick seal bag
  • KCIV-388 Vertical packaging machineLinking bag
  • KCIV-388 Vertical packaging machine3 side sealed bag
  • KCIV-388 Vertical packaging machine4 side sealed bag
  • KCIV-388 Vertical packaging machineGusset bag
  • KCIV-388 Vertical packaging machineTriangle bag
Specification
Model JAIV-4240D JAIV-5240D JAIV-7240D
Transverse Sealing Netted Line/Straight Line(optional)
Bag Pulling Stepping Motor Bag Pulling
Measuring Range 150-1500ML 2000ML 4000ML
Bag Length 80-300MM 80-350MM 100-500MM
Bag Width 60-200MM 100-250MM 180-350MM
Packing Speed 10-60bag/min 10-60bag/min 5-55bag/min
Film Width Max.420MM Max.520MM Max.720MM
Film Roll Diameter Max.320MM Max.320MM Max.320MM
Power 220V 50/60HZ 2KW 220V 50/60HZ 3KW 220V 50/60HZ 3KW
Machine Size(L*W*H) 1217*1015*1343MM 1488*1080*1490MM 1780*1350*2050MM
Machine Weight About 650kg About 680kg About 750kg
Features
  • Adjustable bag former to accommodate various product dimensions.
  • Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
  • The feeding conveyor features an adjustable width for various product dimensions.
  • Rotating jaw sealing head with maximum flexibility.
  • Dual fin seal wheels.
  • Safety covers to prevent operator access to moving parts.
  • Easy to use touch screen controller.
  • Independent temperature controllers for fin and end seals.
Options
  • 304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
  • The end sealing can be completed with a box motion head or the rotary jaw head.
  • Hot stamp printing for date codes
  • Gas flush device for modified atmosphere packaging
  • Extended feeding conveyor
  • Auto feeding system
  • Additional reel holder
  • Gusseting device
Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
