VFFS Packaging Machine for Liquids

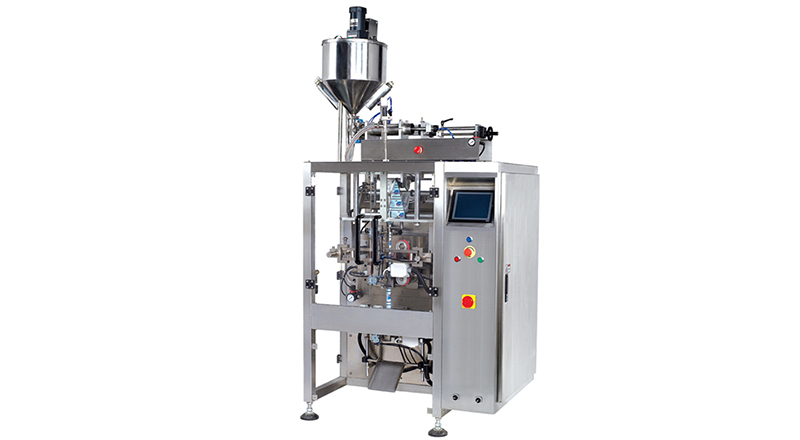

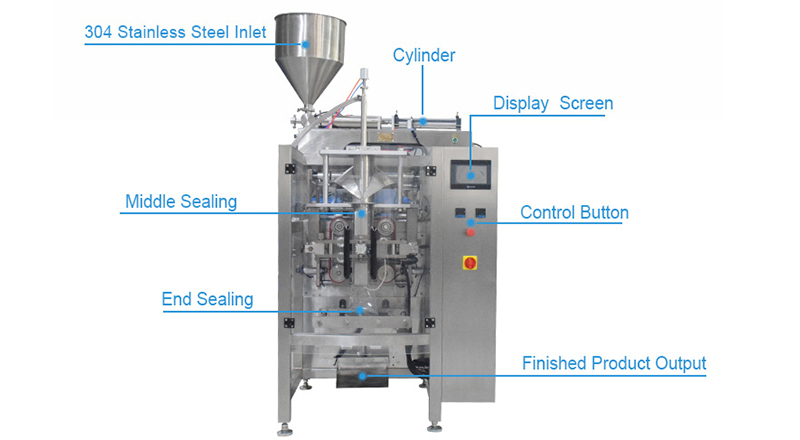

This VFFS packaging machine for liquids is made of a 304 stainless steel to protect against liquid contamination. It is controlled using a PLM system to accurately fill and seal liquid pouches, making them ideal for packaging oil, water, juice, milk, honey and other liquid types.

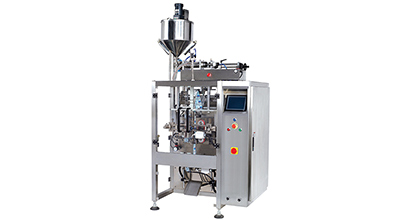

Automatic liquip packaging machine

Samples

Bag types

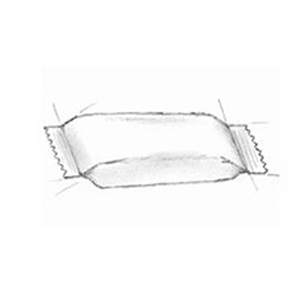

Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag

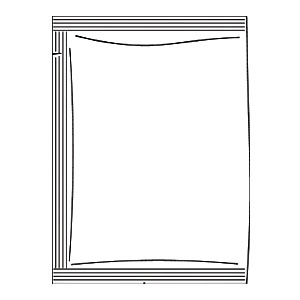

3 side sealed bag
4 side sealed bag
Gusset bag

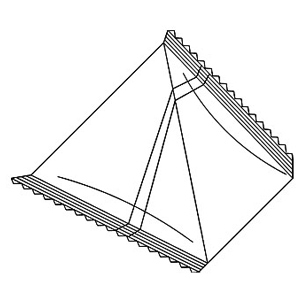

Triangle bag

Specification

Model	KCIV-4220	KCIV-5220	KCIV-6220
Film width	Max.420mm	Max.520mm	Max.720mm
Bag length	80-300mm	80-350mm	180-350mm
Bag width	60-200mm	100-250mm	100-500mm
Film roll diameter	Max.320mm	Max.320mm	Max.320mm
Packaging rate	5-60 bag/min	5-60 bag/min	5-55 bag/min
Range of measurement	150-1500ml	2000ml	4000ml
Film thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm
Power	220V 50/60Hz 2kw	220V 50/60Hz 3kw	220V 50/60Hz 3kw
Machine size(LxWxH)	1217x1015x1343mm	1488x1080x1490mm	1780x1350x2050mm
Machine quality	About 650kg	About 680kg	About 750kg

Features

Adjustable bag former to accommodate various product dimensions.
Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use touch screen controller.
Independent temperature controllers for fin and end seals.

Options

304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
