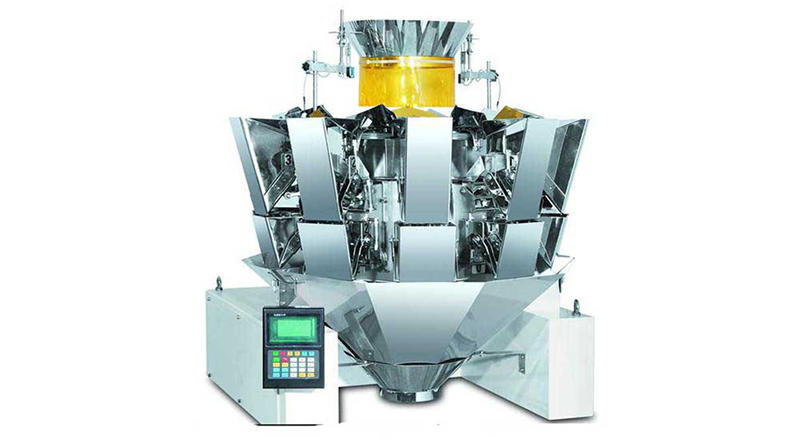

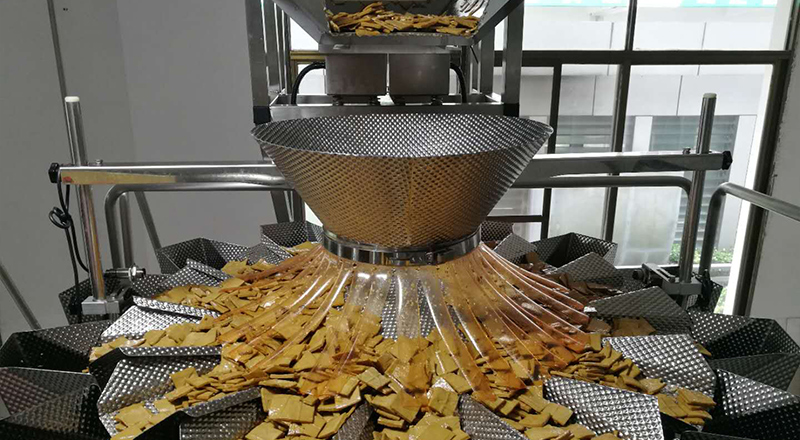

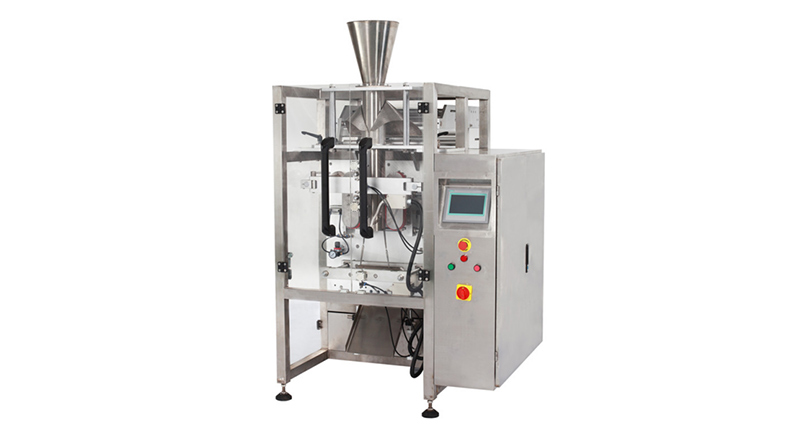

The KCIV-4220 Vertical packaging machine is equipped with an automatic feeder and weighing system to make your packaging more flexible. We also offer a belt conveyor or bucket feeding system to reduce material waste.

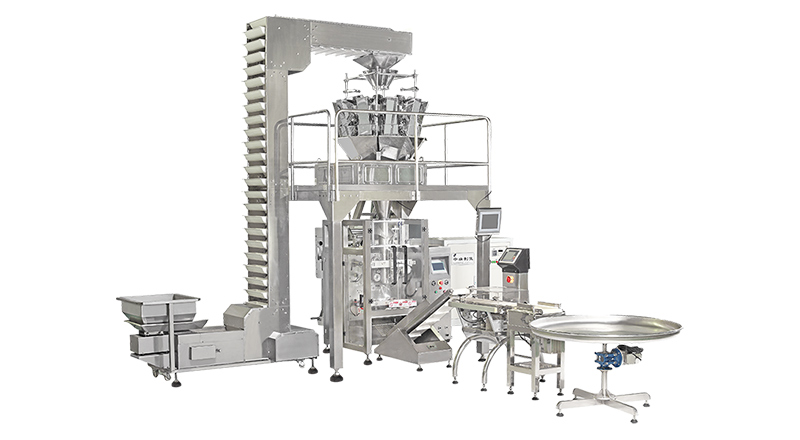

Automatic weighing,filling and packing machine
Bag types
Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag
3 side sealed bag
4 side sealed bag
Gusset bag
Triangle bag
Specification
Type
KCIV-4220
Film Width
Max.420mm
Bag Length
80-300mm
Bag Width
60-200mm
Film Roll Diameter
Max.320mm
Packaging Rate
5-60 bag/min
Power
220V 50/60Hz 2kw
Packing Film Material
OPP/CPP,OPP/P, BOPP/VMPET/PE etc
Machine Size
1217x1015x1343mm
Machine Quality
About 650kg
Details

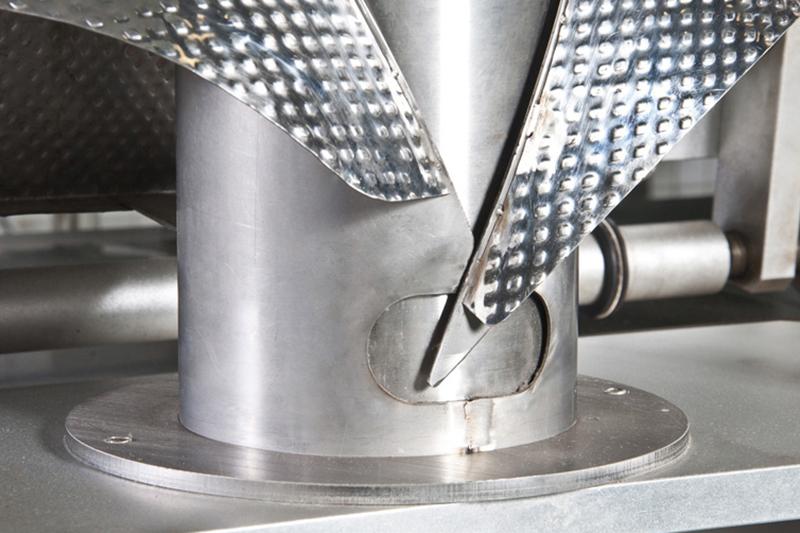

Bag forming unit
Film tension

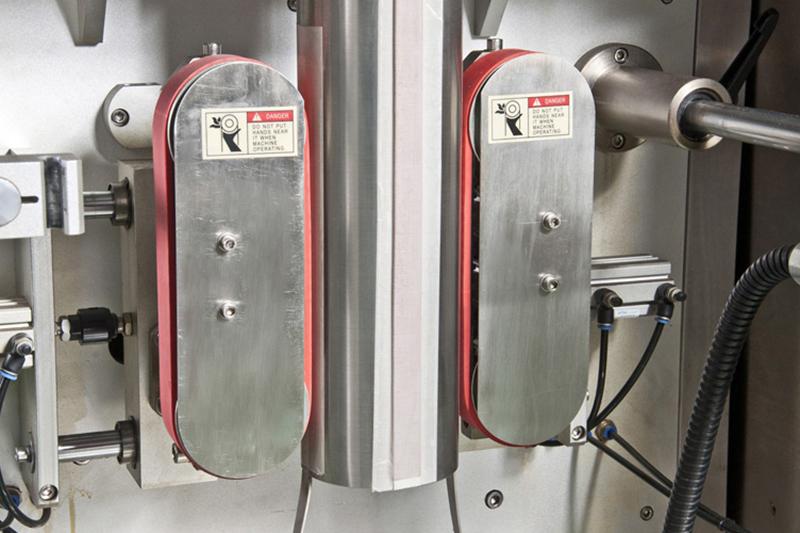

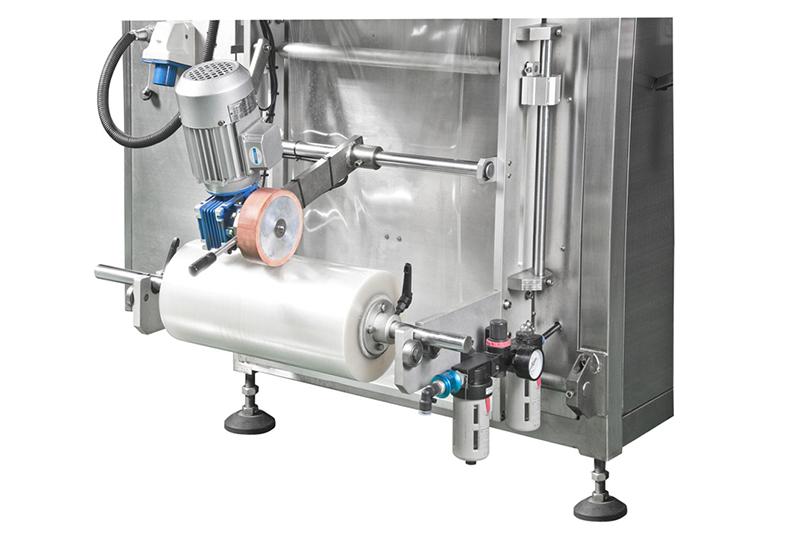

Film transport and unwind
Features
Adjustable bag former to accommodate various product dimensions.
Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use touch screen controller.
Independent temperature controllers for fin and end seals.
Options
304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag
4 side sealed bag
Gusset bag
Triangle bag
