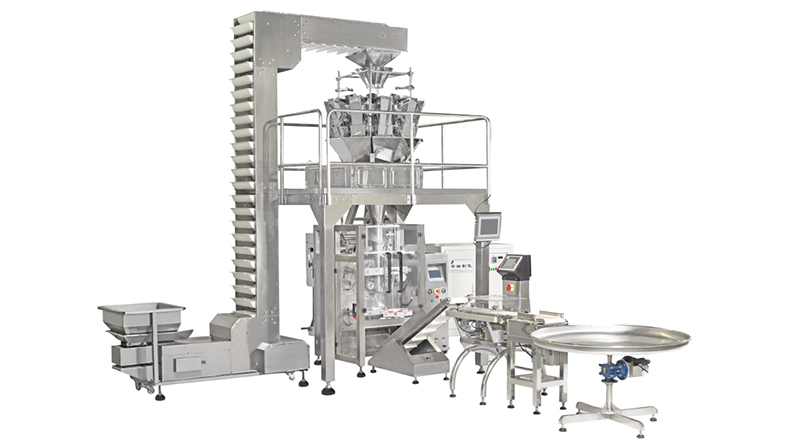

This packing line combines a vertical form fill and seal machine (VFFS) with a multi-head weighing scale or vibratory net weighing scale according to your needs. The feeding conveyor is available as a belt conveyor or bucket feeding conveyor with an optional discharge pan. This equipment is suitable for packaging bulk grain, slices, and short bar materials such as puffed food, dried food, rice, and seeds.

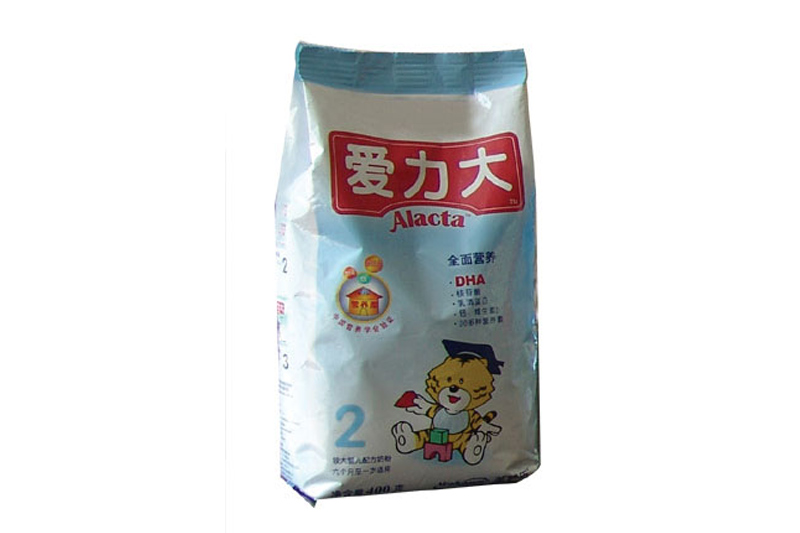

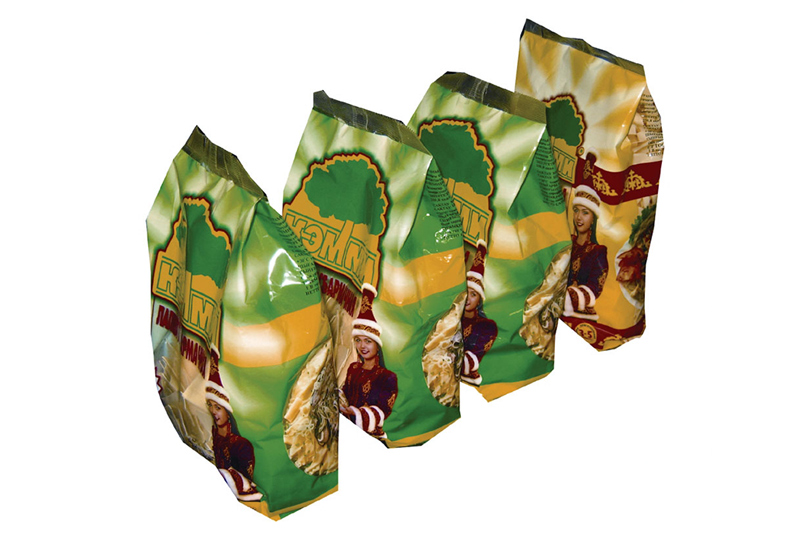

Samples
Bag types
Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag
3 side sealed bag
4 side sealed bag

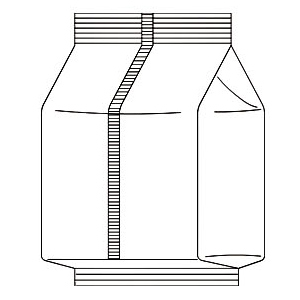

Gusset bag
Triangle bag
Stand up bag
Specification
Type
KCIV-5220
Film Width
Max.520mm
Bag Length
80-350mm
Bag Width
100-250mm
Film Roll Diameter
Max.320mm
Packaging Rate
5-60 bag/min
Power
220V 50/60Hz 3kw
Packing Film Material
OPP/CPP,OPP/P, BOPP/VMPET/PE etc
Machine Size
1488x1080x1490mm
Machine Quality
About 680kg
Details

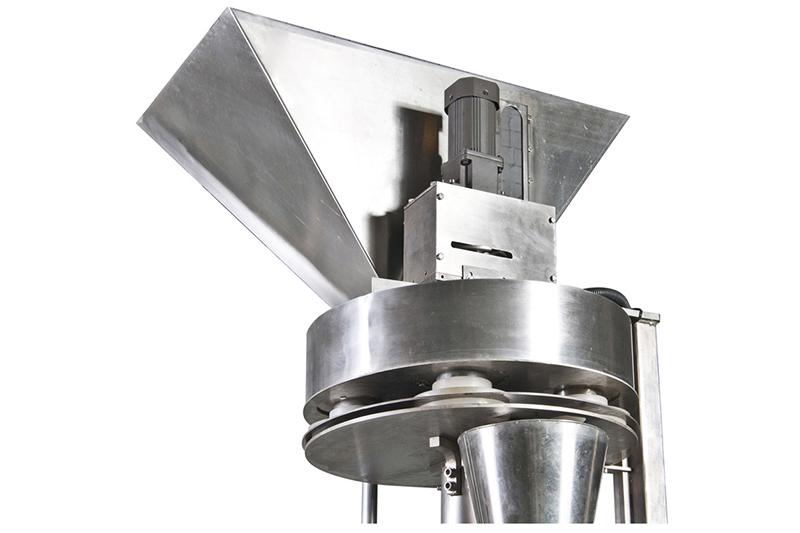

Granule turntable metering mechanism

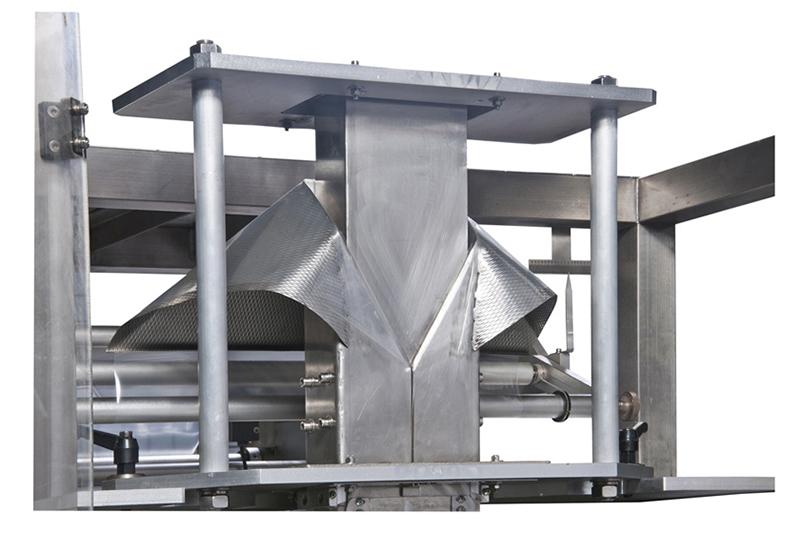

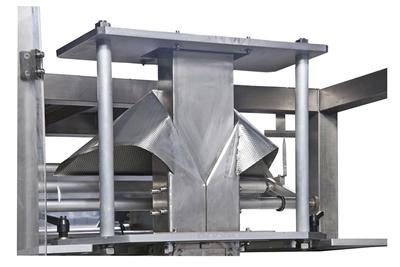

Forming shoulder

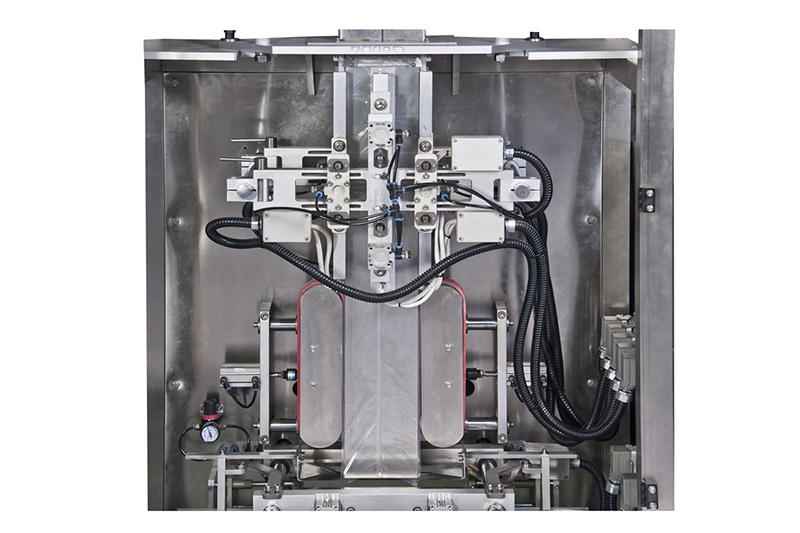

Longitudinal seal structure

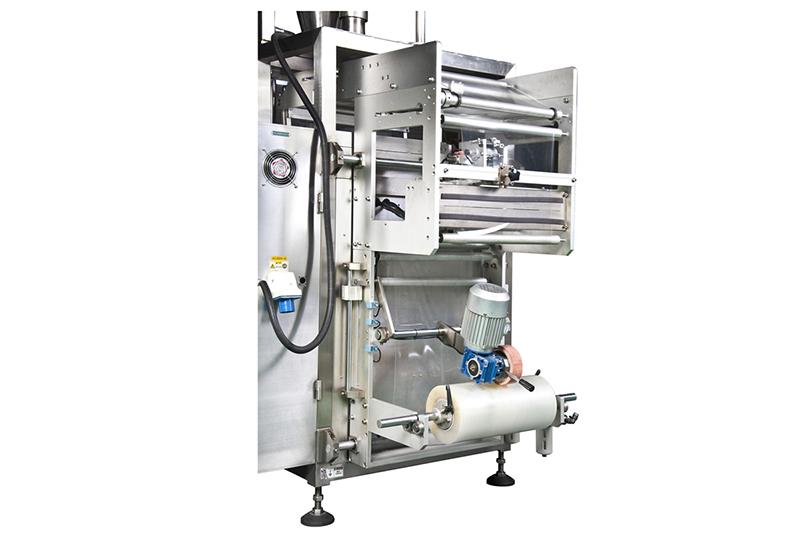

Filming transport and unwind
Features
Adjustable bag former to accommodate various product dimensions.
Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use touch screen controller.
Independent temperature controllers for fin and end seals.
Options
304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
