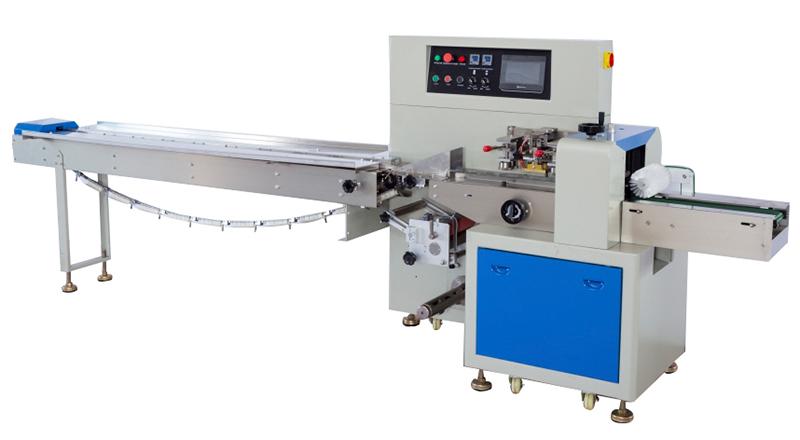

KCH-250X Horizontal flow wrapper

KCH-250X Horizontal flow wrapper

The KCH-250X Flow wrapper with bottom reel holder was developed to pack loose, irregularly shaped products. Compatible with film as wide as 250mm, it is especially suited for candies, biscuits and other closely wrapped products.

Samples

Bag types

Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag

Specification

Model	KCH-250X
Film width	Max.250mm
The bag length	65 ~ 190mm or 120~280mm
Bag width	30 ~ 110mm
Product height	Max.40mm
Film diameter	Max.320mm
Packing speed	40-230 packs/ minute
Power supply	220V,50/60HZ,2.4KVA
Machine dimensions	(L)670 (W)3920 (H)1320mm
Machine weight	400Kg

Details

All the parts from the tissue wrapping machine that come into contact with materials are made out of 304 stainless steel, conforming to food safety and health care standards. This offers the machine a stable performance and long service life.

The temperature on the film wrapping equipment is controlled using an independent temperature controller, which suits various packaging materials.

Features

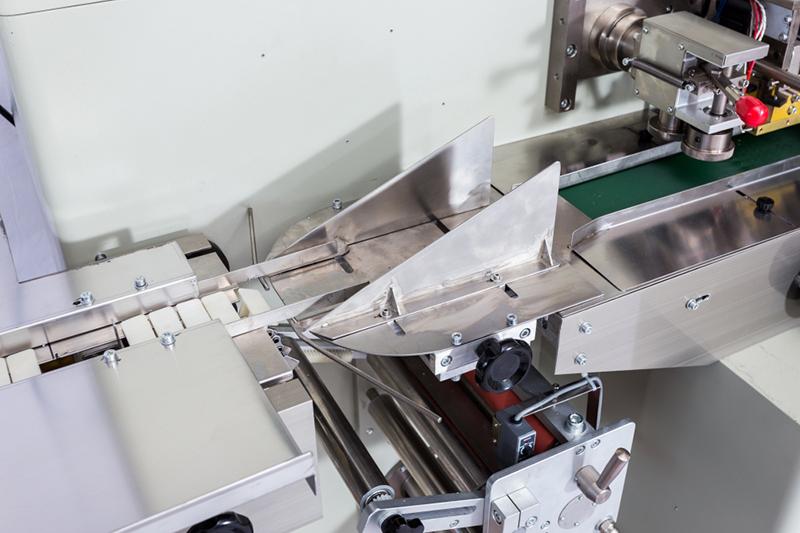

Adjustable bag former to accommodate various product dimensions.

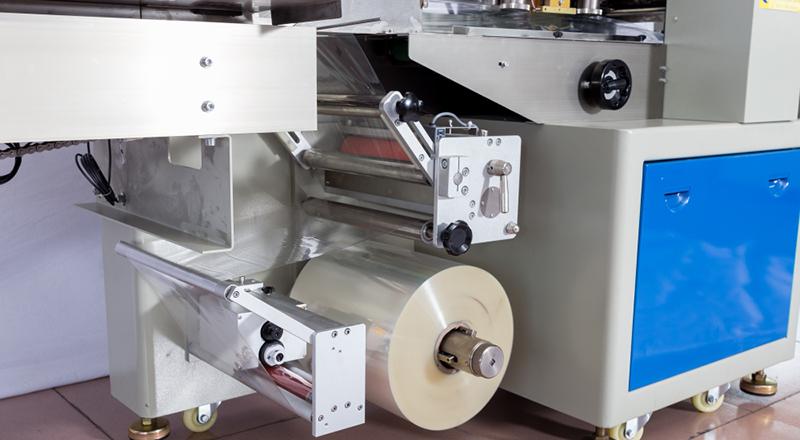

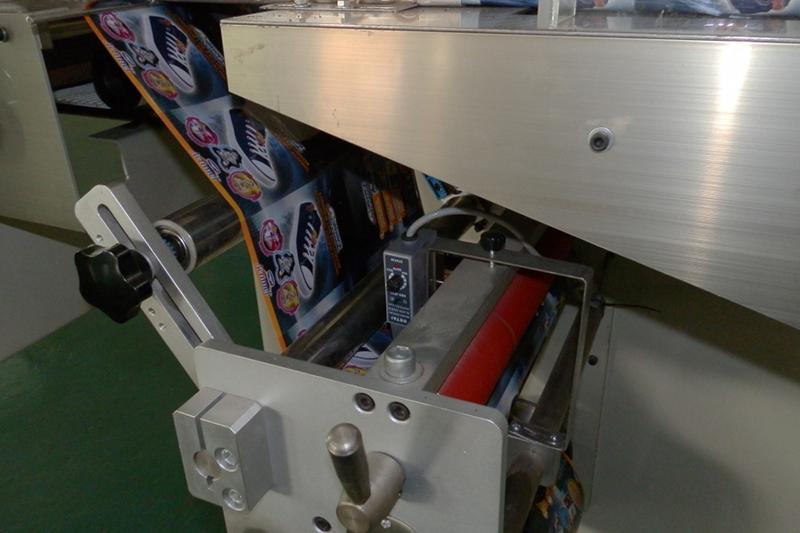

Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.

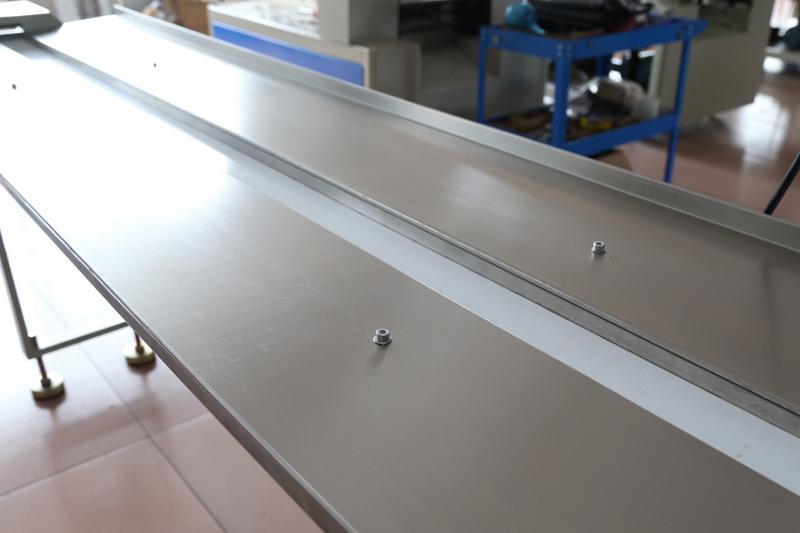

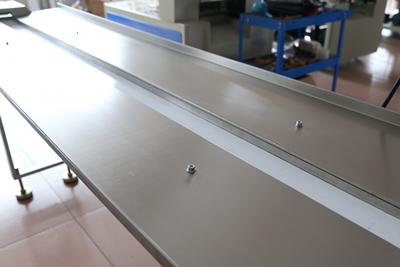

The feeding conveyor features an adjustable width for various product dimensions.

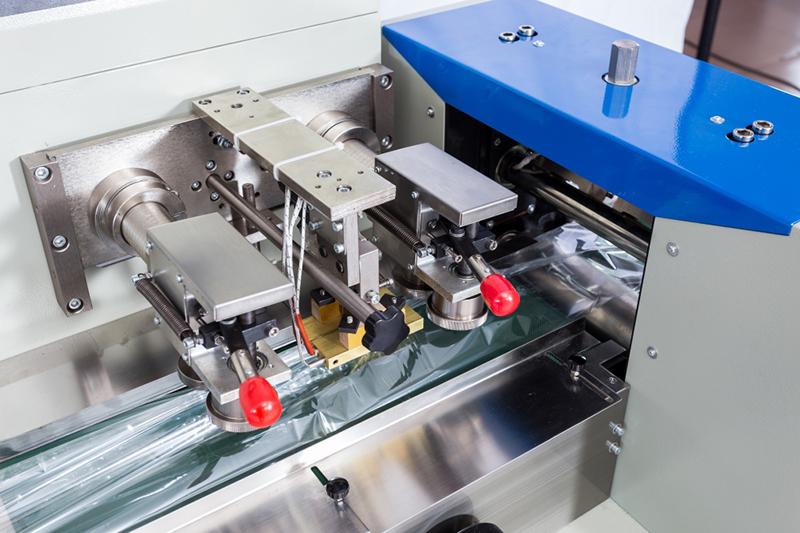

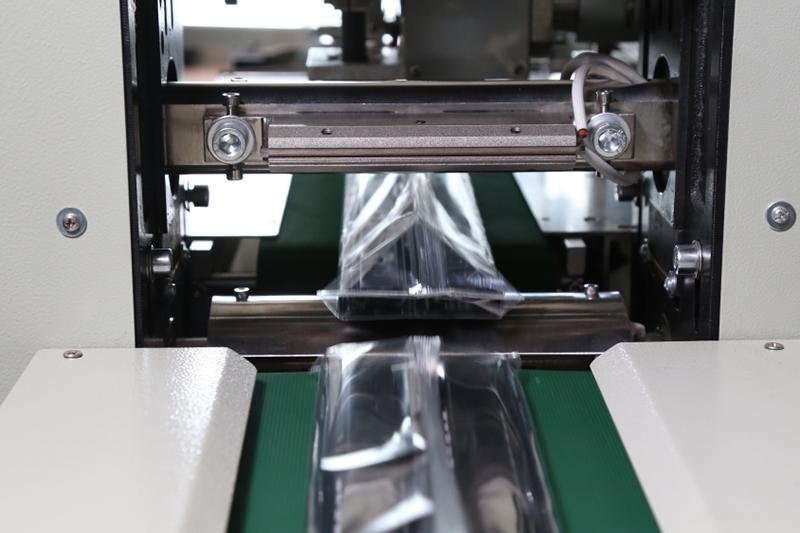

Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use touch screen controller.

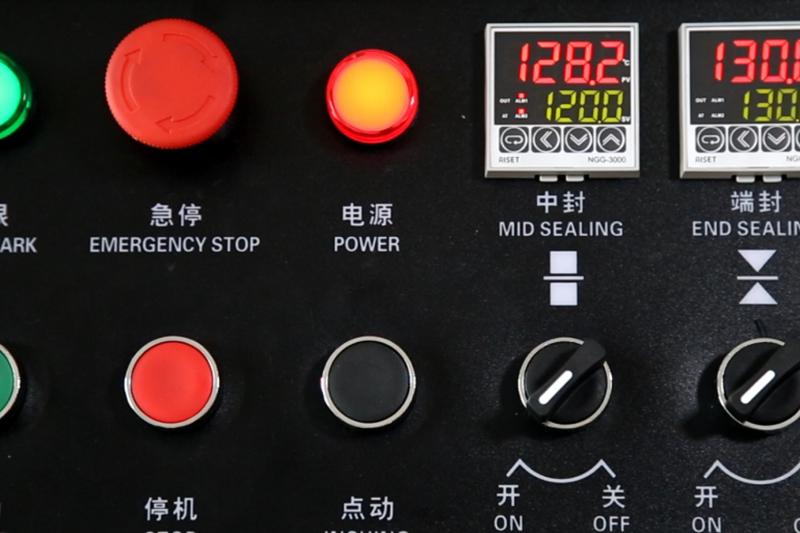

Independent temperature controllers for fin and end seals.

Options

304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
