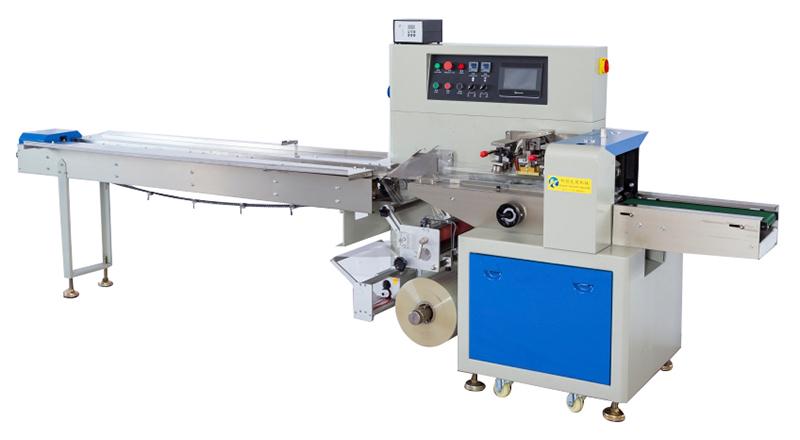

KCH-350X Horizontal Flow-Pack Wrapping Machine

The KCH-350X Flow wrapper with bottom reel holder is designed to pack loose products with irregular shapes. The equipment is compatible with film with a maximum width of 350mm. The bag range in width from 50-230mm and are sealed by the equipment.

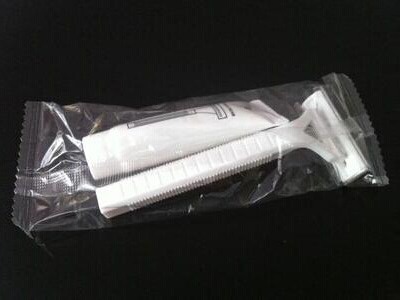

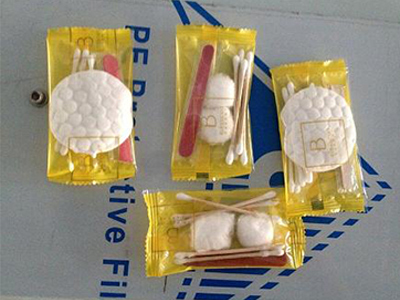

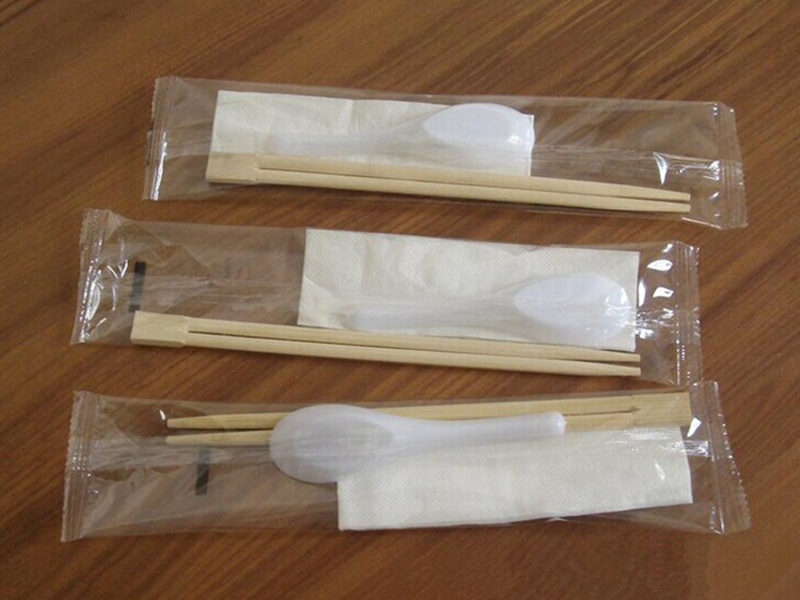

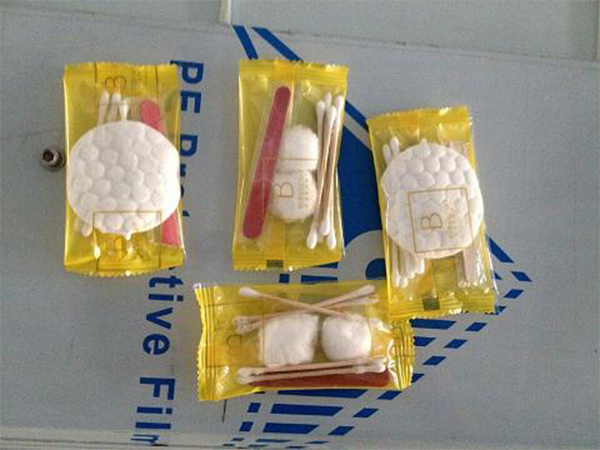

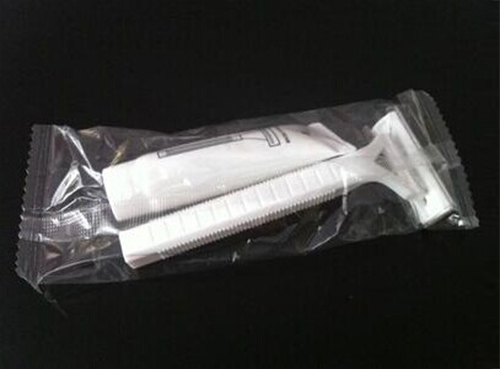

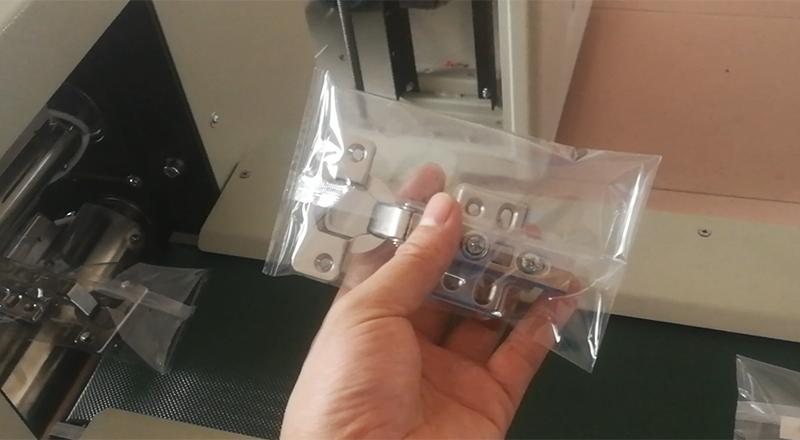

Samples

Bag types

Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag

Specification

Model	KCH-350X
Film width	Max.350mm
The bag length	65 ~ 190mm or 120~280mm
Bag width	50 ~ 230mm
Product height	Max.40mm
Film diameter	Max.320mm
Packing speed	40-230 packs/ minute
Power supply	220V,50/60HZ,2.4KVA
Machine dimensions	(L)670 (W)3920 (H)1320mm
Machine weight	400Kg

Details

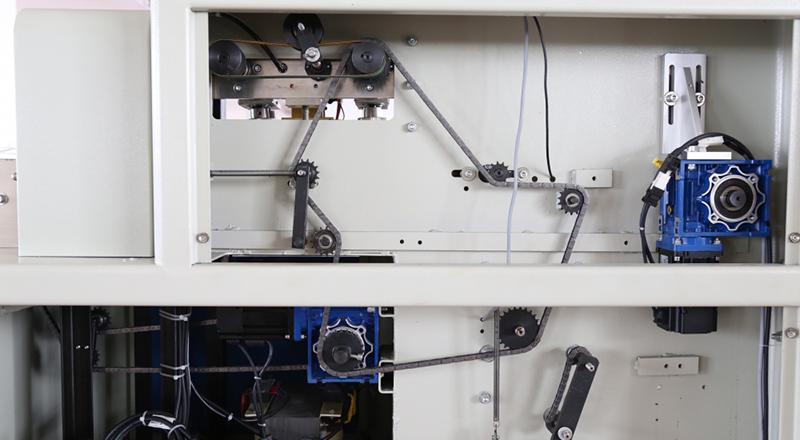

When using the horizontal flow-pack three servo wrapping machine within the metal and plastics industry, it requires no people to add material, which improves equipment efficiency.

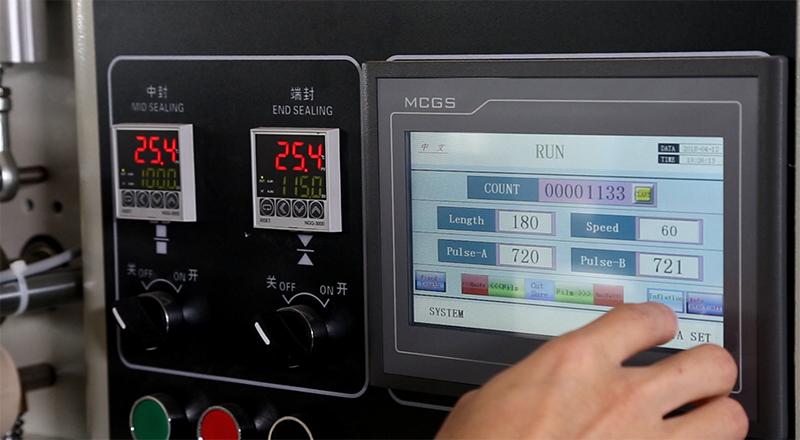

The 7-inch touch screen offers clear parameters that are easy to set.

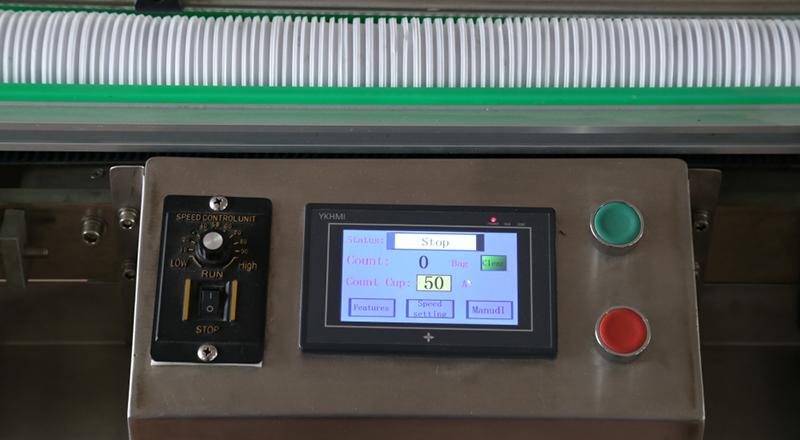

The horizontal wrapping machine is equipped with a counter to count product quantity and ensure they are packaged accurately.

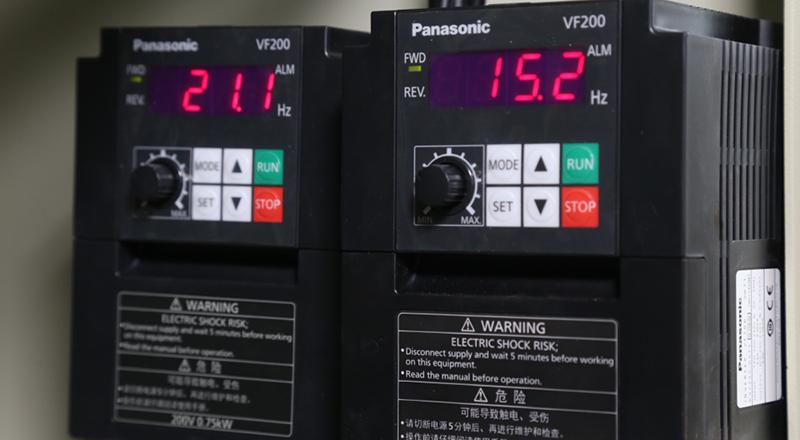

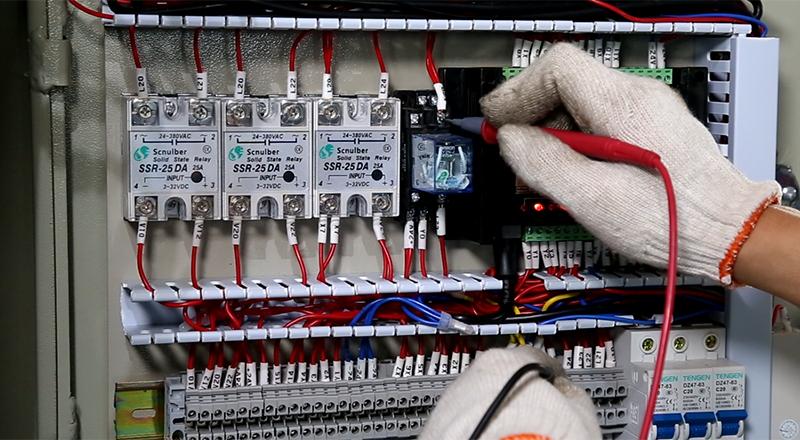

The plastic film wrapping machine uses Panasonic frequency converter control and will not run idly when there is no film after parameters are set. This saves time and film.

The wrapping machine uses a safe Panasonic PLC control system with a self-diagnosis function that will automatically stop the machine in the event of a malfunction.

Features

Adjustable bag former to accommodate various product dimensions.

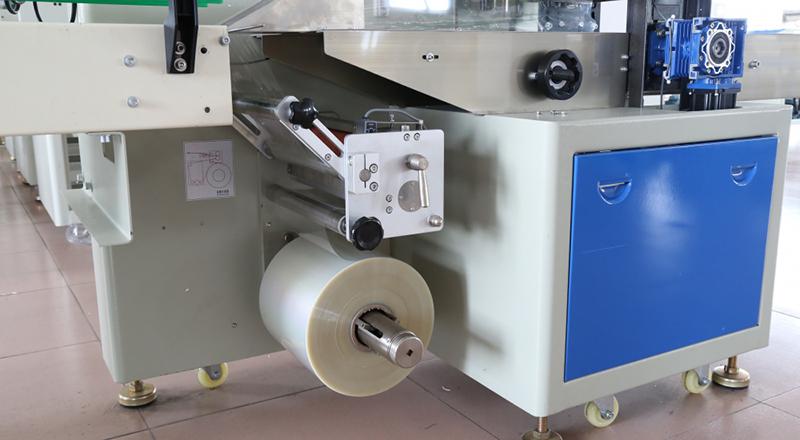

Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use touch screen controller.
Independent temperature controllers for fin and end seals.

Options

304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
