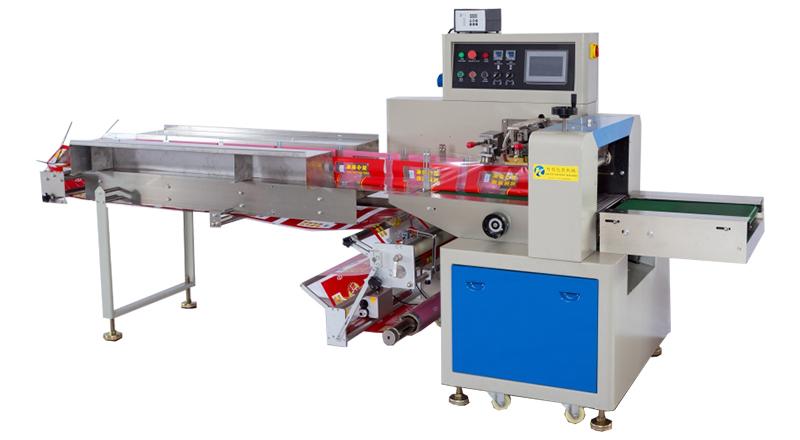

KCH-650X Horizontal flow wrapper

Compatible with a maximum film width of 650mm, the equipment allows for flexible packing volume. The KCH-650X Flow wrapper with bottom reel holder is designed to pack loose products which are irregularly shaped.

Samples
Bag types
  • KCH-650X Horizontal flow wrapperPillow bag
  • KCH-650X Horizontal flow wrapperPillow bag with euro hole
  • KCH-650X Horizontal flow wrapperPillow bag with round hole
  • KCH-650X Horizontal flow wrapperStick seal bag
  • KCH-650X Horizontal flow wrapperLinking bag
Specification
Model KCH-650X
Film width Max.650mm
Bag length 180~450mm
Bag width 80～300mm
Product height Max.120mm
Film diameter Max. 320mm
Packing speed 30-180bag/min
Power supply 220V,50/60HZ,3Kw
Machine sizes (L)3920×(W)950×(H)1320mm
Weight 500Kg

Details
Features
  • Adjustable bag former to accommodate various product dimensions.

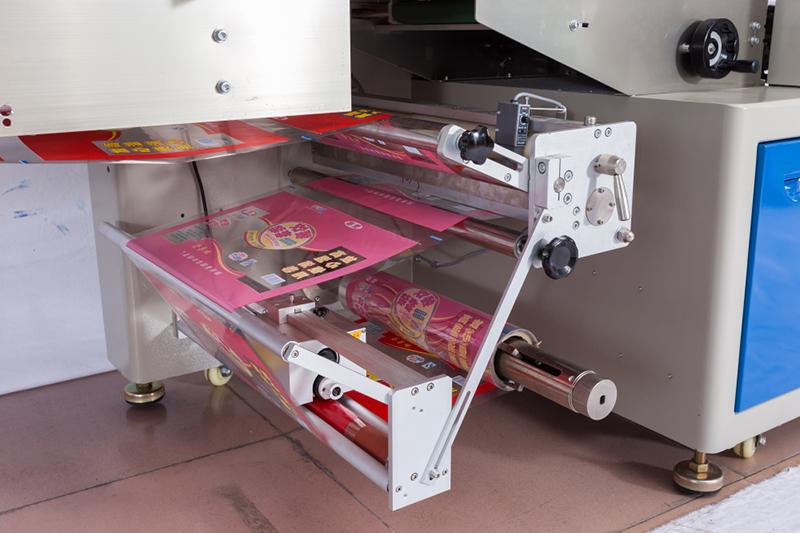

  • Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
  • The feeding conveyor features an adjustable width for various product dimensions.

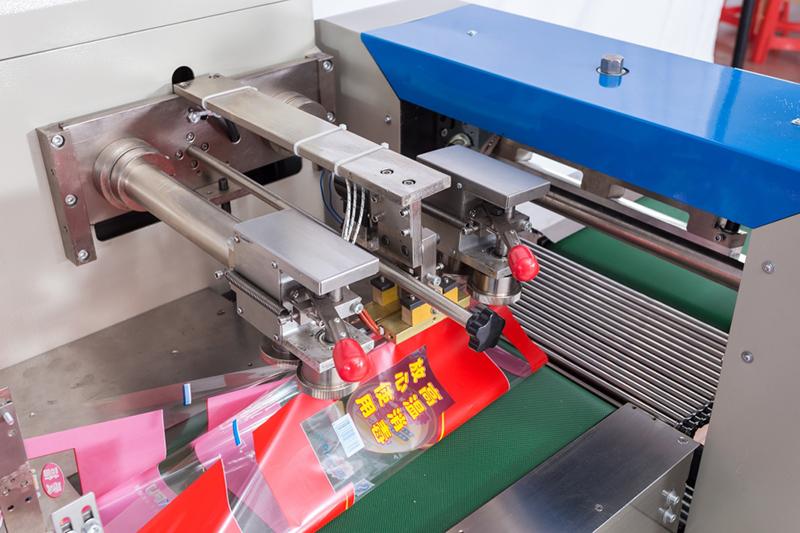

  • Rotating jaw sealing head with maximum flexibility.
  • Dual fin seal wheels.
  • Safety covers to prevent operator access to moving parts.

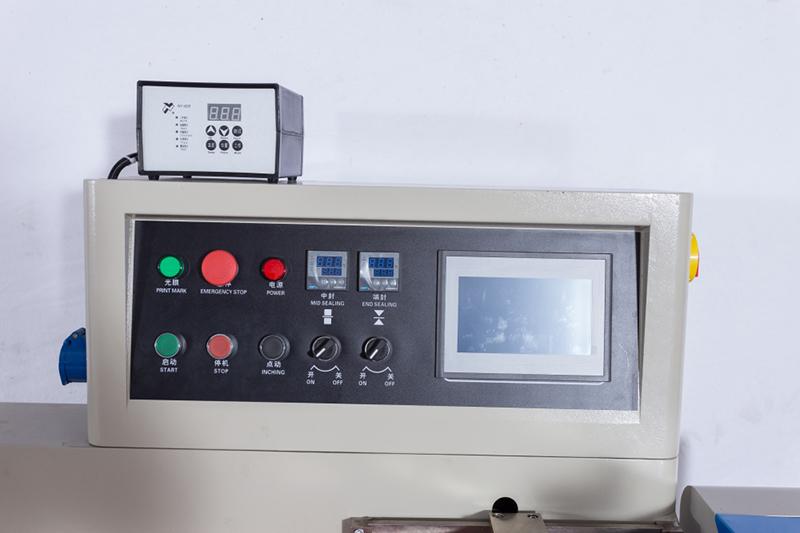

  • Easy to use touch screen controller.
  • Independent temperature controllers for fin and end seals.
Options
  • 304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
  • The end sealing can be completed with a box motion head or the rotary jaw head.
  • Hot stamp printing for date codes
  • Gas flush device for modified atmosphere packaging
  • Extended feeding conveyor
  • Auto feeding system
  • Additional reel holder
  • Gusseting device
Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
