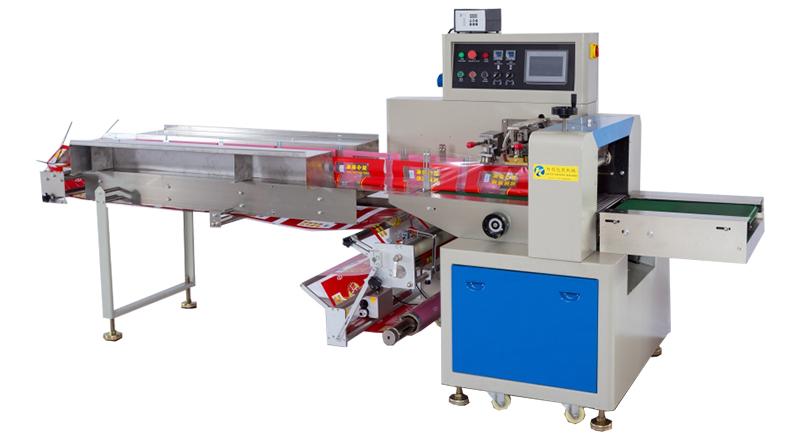

KCH-450X Horizontal flow wrapper

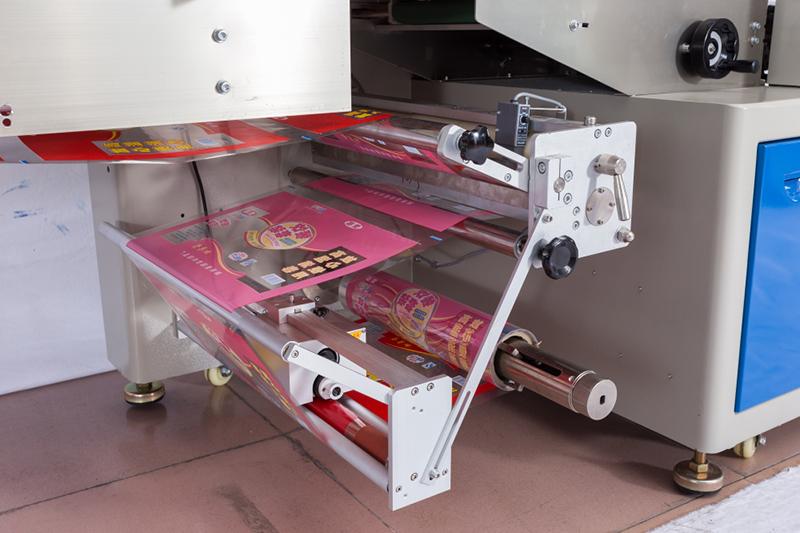

The KCH-450X Flow wrapper with bottom reel holder is produced for the packing of loose, irregularly shaped products with film. The maximum film width is 450mm, allowing for greater packing volume for products.

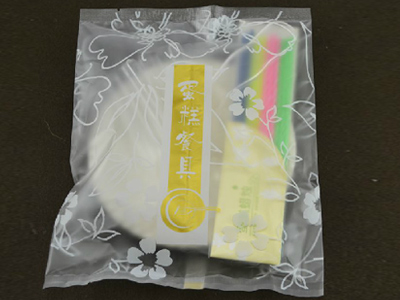

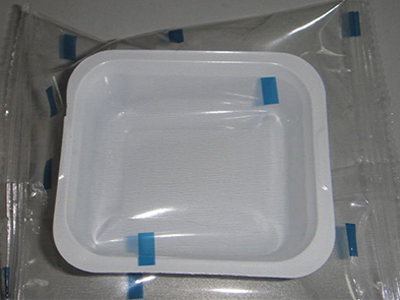

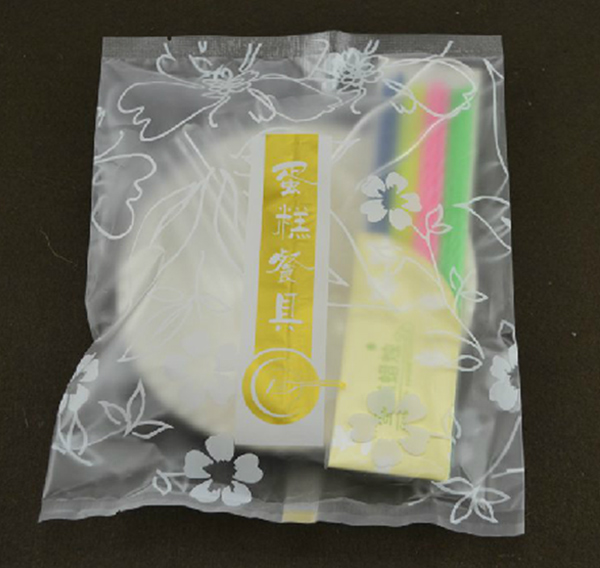

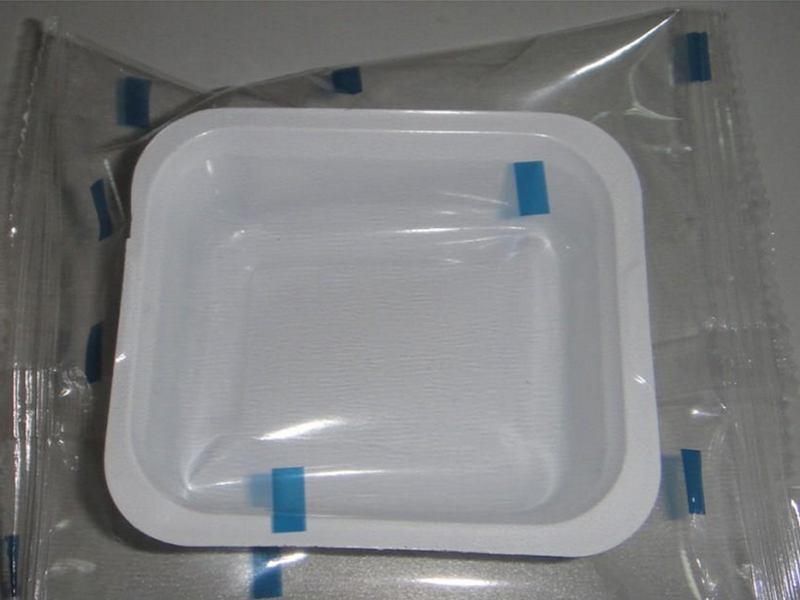

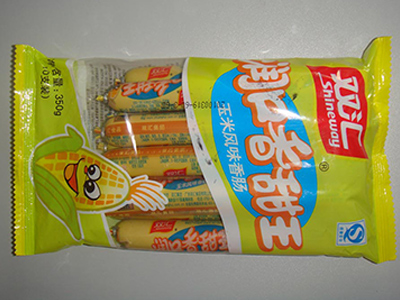

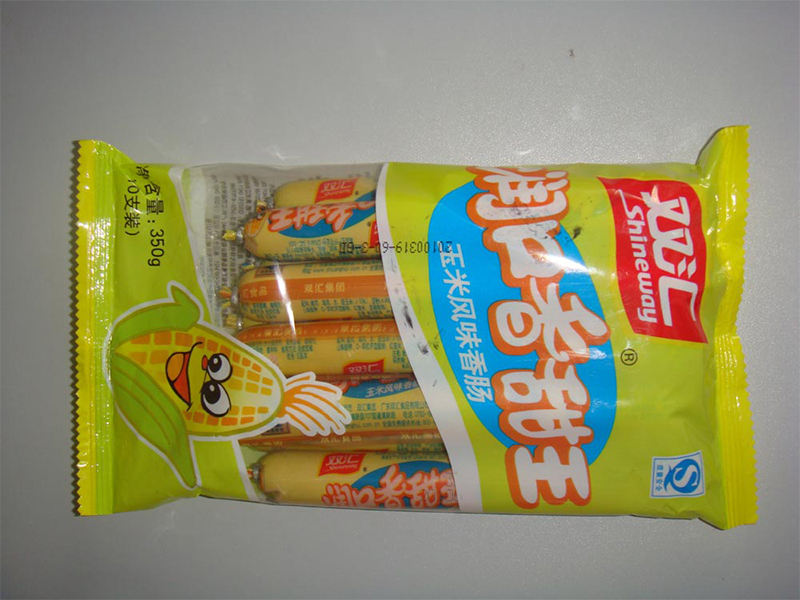

Samples
  • KCH-450X Horizontal flow wrapper
  • KCH-450X Horizontal flow wrapper
  • KCH-450X Horizontal flow wrapper
Bag types
  • KCH-450X Horizontal flow wrapperPillow bag
  • KCH-450X Horizontal flow wrapperPillow bag with euro hole
  • KCH-450X Horizontal flow wrapperPillow bag with round hole
  • KCH-450X Horizontal flow wrapperStick seal bag
  • KCH-450X Horizontal flow wrapperLinking bag
Specification
Model KCH-450X
Film width Max. 450mm
Bag length 130-450mm
Bag width 50-180mm
Product height Max.70mm
Film diameter Max. 320mm
Packing speed 30-180bag/min
Power supply 220V, 50/60HZ, 2.6KVA
Machine sizes (L) 820 * (W) 4020* (H) 1450mm
Weight 450Kg

Details
Features
  • Adjustable bag former to accommodate various product dimensions.
  • Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
  • The feeding conveyor features an adjustable width for various product dimensions.

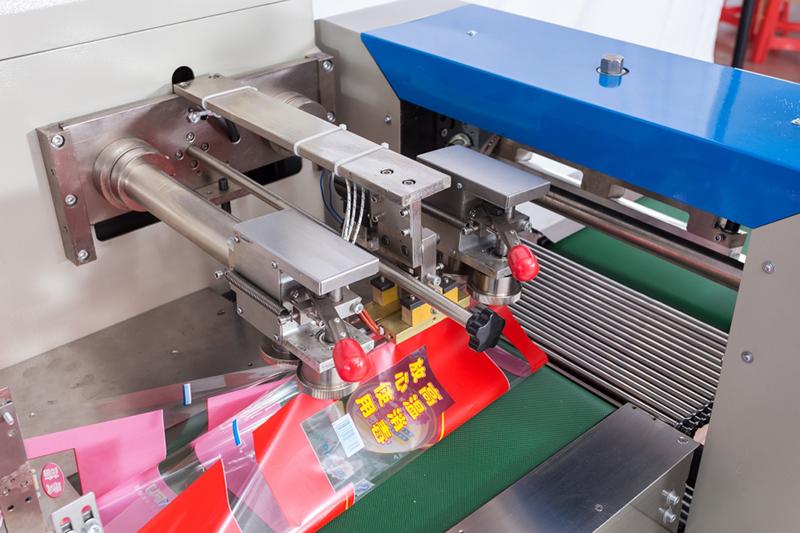

  • Rotating jaw sealing head with maximum flexibility.
  • Dual fin seal wheels.
  • Safety covers to prevent operator access to moving parts.

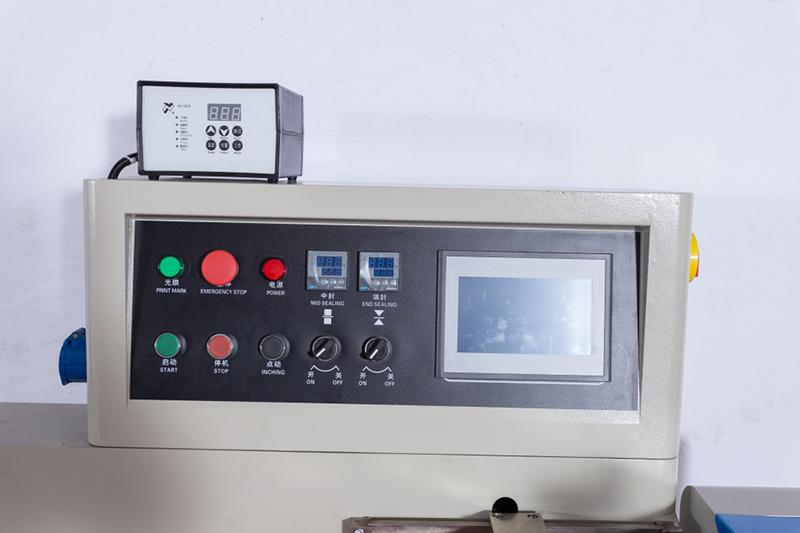

  • Easy to use touch screen controller.
  • Independent temperature controllers for fin and end seals.
Options
  • 304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
  • The end sealing can be completed with a box motion head or the rotary jaw head.
  • Hot stamp printing for date codes
  • Gas flush device for modified atmosphere packaging
  • Extended feeding conveyor
  • Auto feeding system
  • Additional reel holder
  • Gusseting device
