The KCH-450W Flow wrapper comes equipped with reciprocating jaws packaging large and tall products with ease. The maximum film width is 450mm.

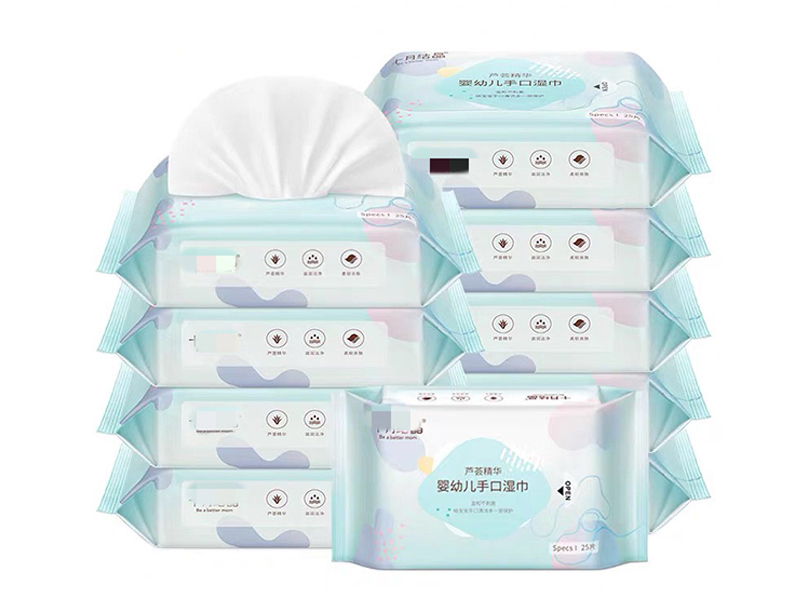

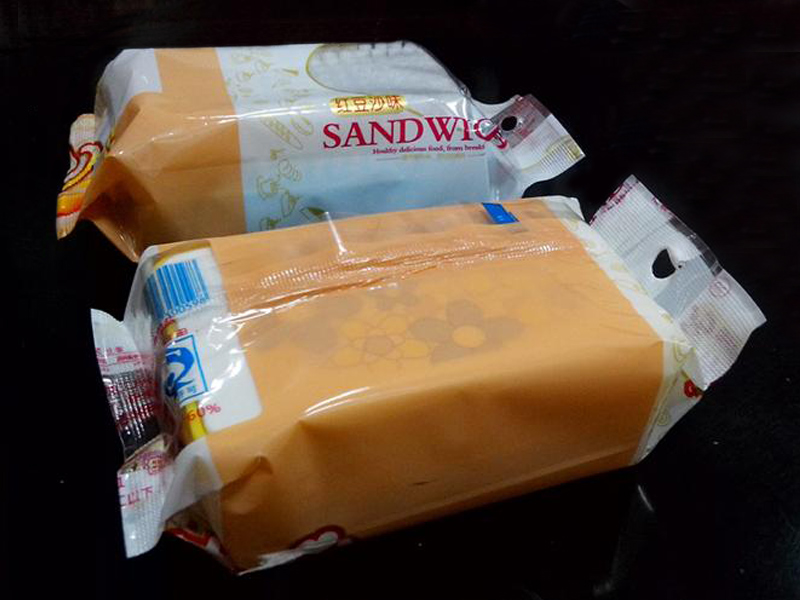

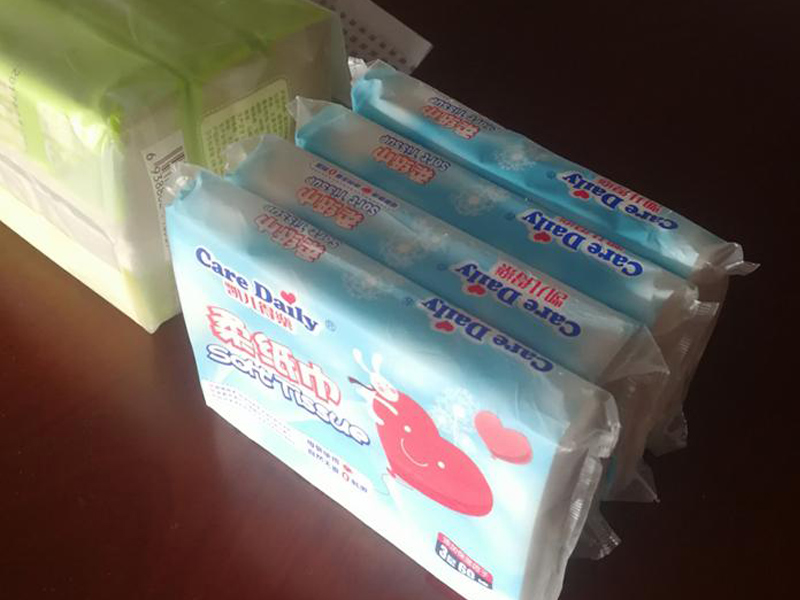

Samples
Bag types
Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag
Specification
Model
KCH-450W
Film Width
Max.450mm
Bag Length
120-450mm
Bag Width
50-160mm
Products High
10-80mm
Film Roll Diameter
Max.320mm
Packing Speed
20-80bag/min
Power
220V 50/60HZ 3.2KW
Machine Size(mm)
4380x870x1500
Machine Weight
960kg
Details

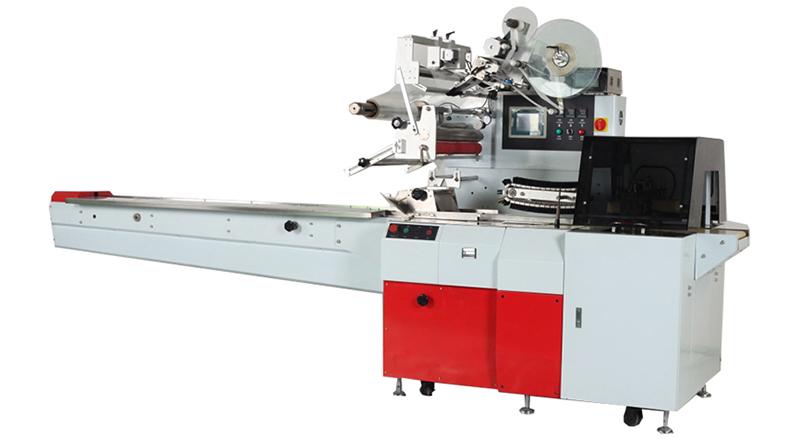

KCH-450W Horizontal flow wrapper

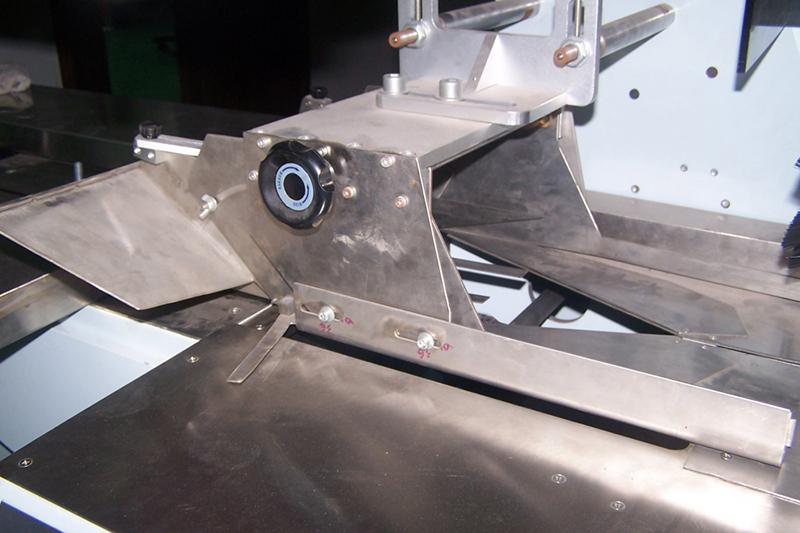

Bag forming unit

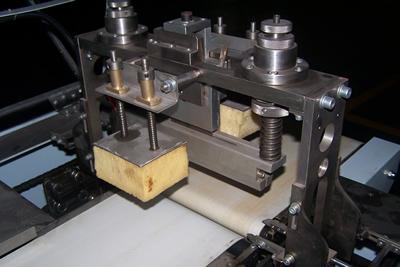

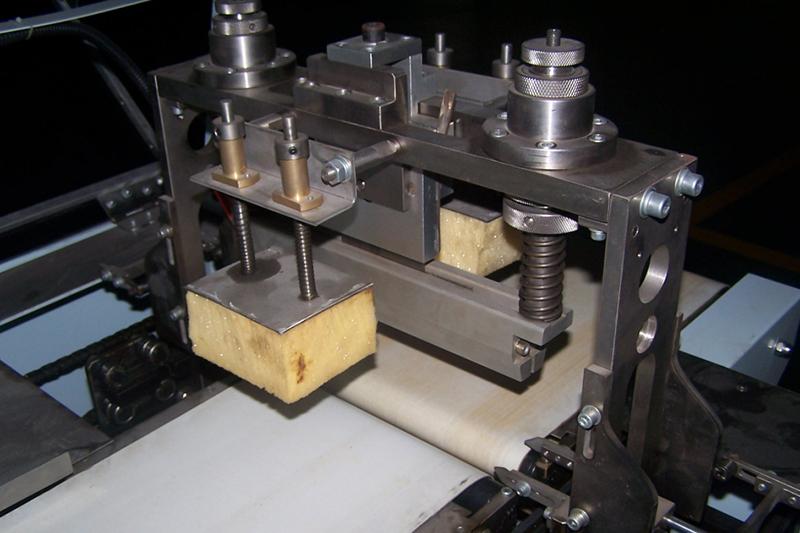

Sealing and cutting device
Features
Adjustable bag former to accommodate various product dimensions.
Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.

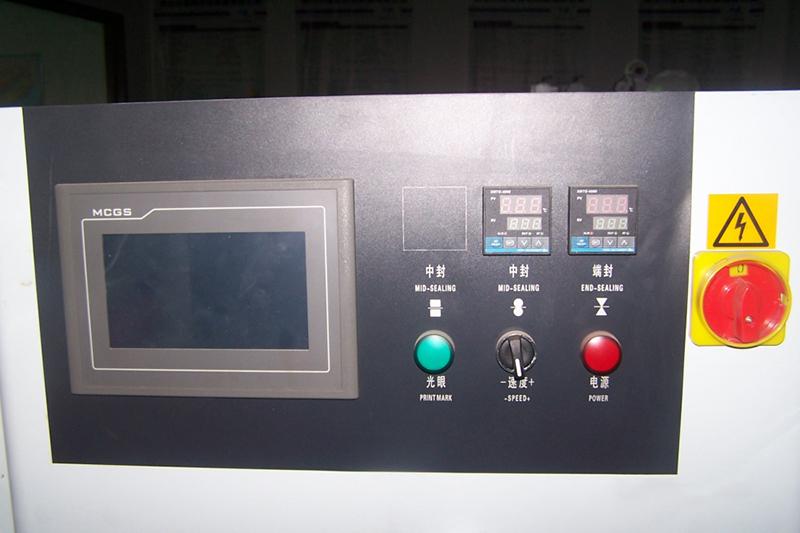

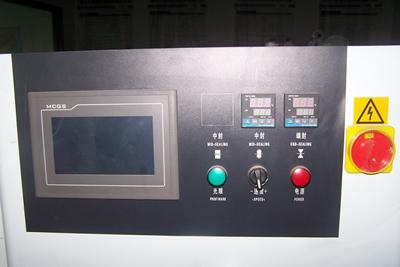

Easy to use KCH-450W Horizontal flow wrapper controller.
Independent temperature controllers for fin and end seals.
Options
304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
