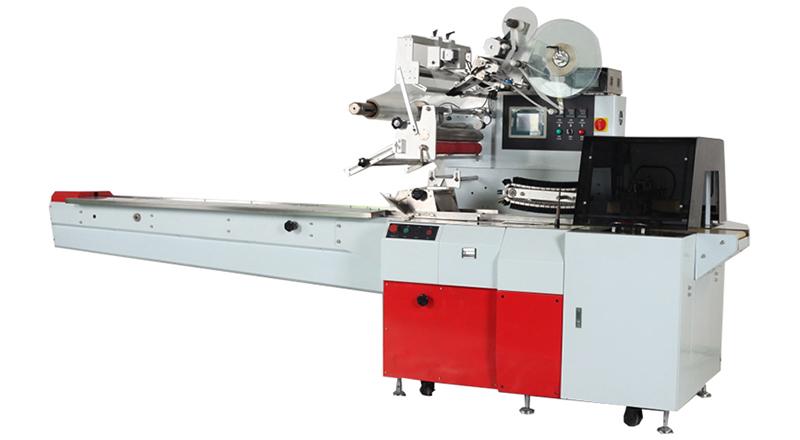

The KCH-650W Flow wrapper is equipped with reciprocating jaws that enable the packing of large and tall products. A gusseting device is available if your products require it. The maximum film width reaches 650mm which allows for the packaging of large volume products.
Samples
Bag types

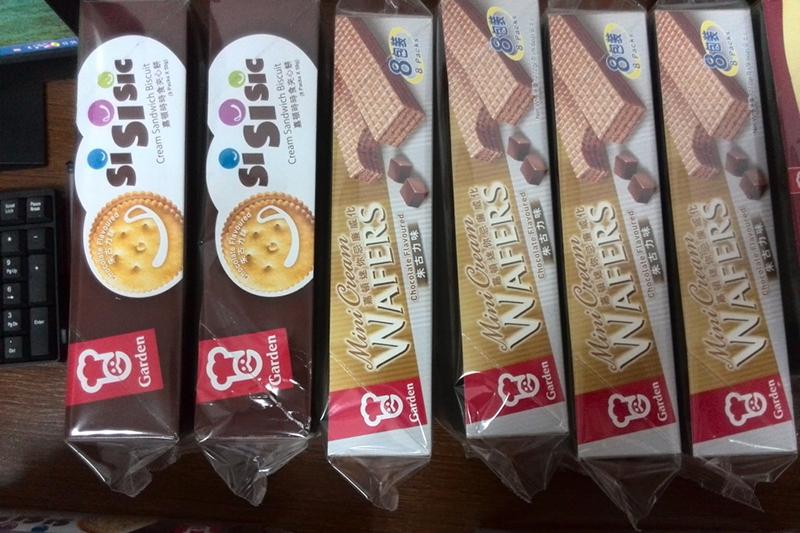

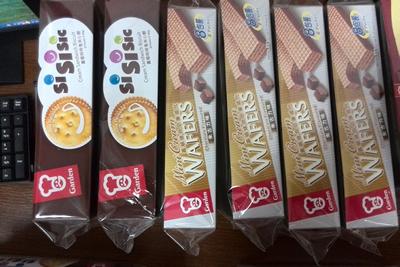

Pillow bag

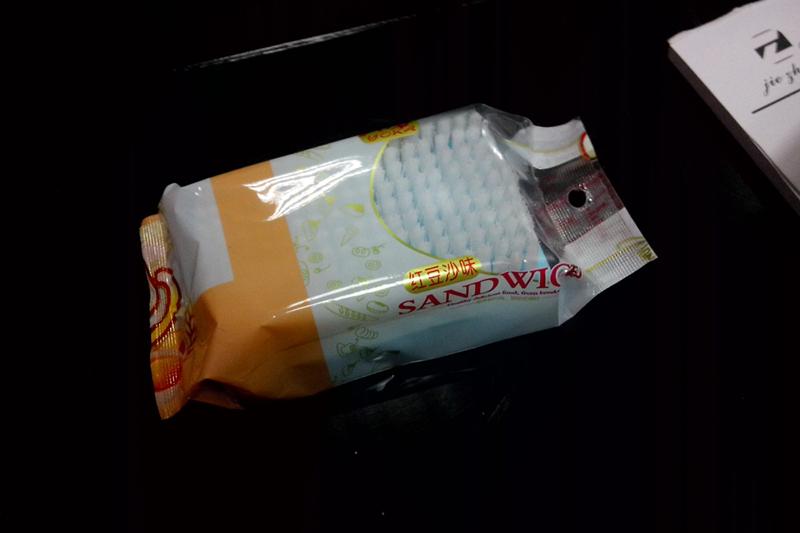

Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag
Specification
Model
KT-600W
Film Width
Max.600mm
Bag Length
120-450mm
Bag Width
50-200mm
Products High
10-80mm
Film Roll Diameter
Max.320mm
Packing Speed
20-80bag/min
Power
220V 50/60HZ 3.6KW
Machine Size(mm)
3990x970x1500
Machine Weight
1160kg
Details

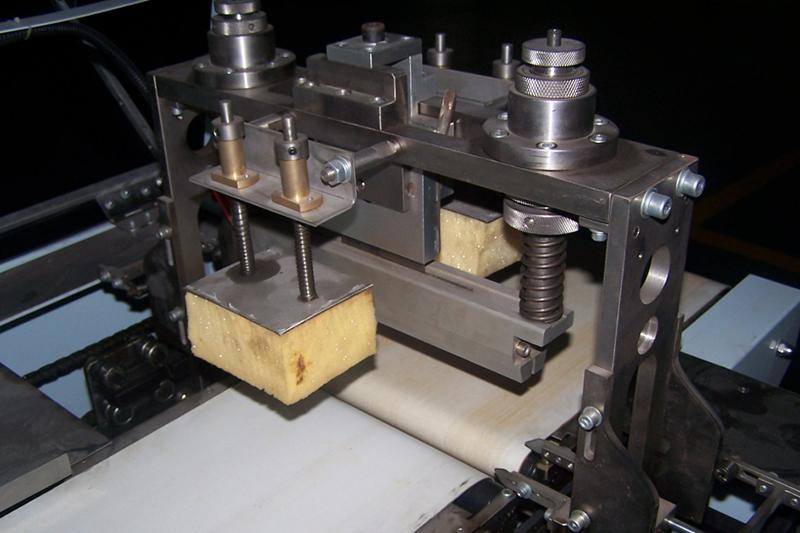

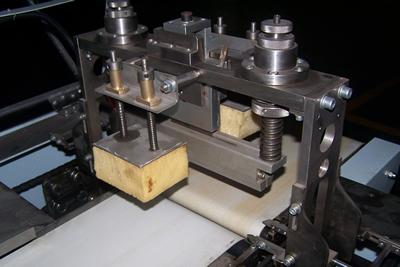

Sealing and cutting device

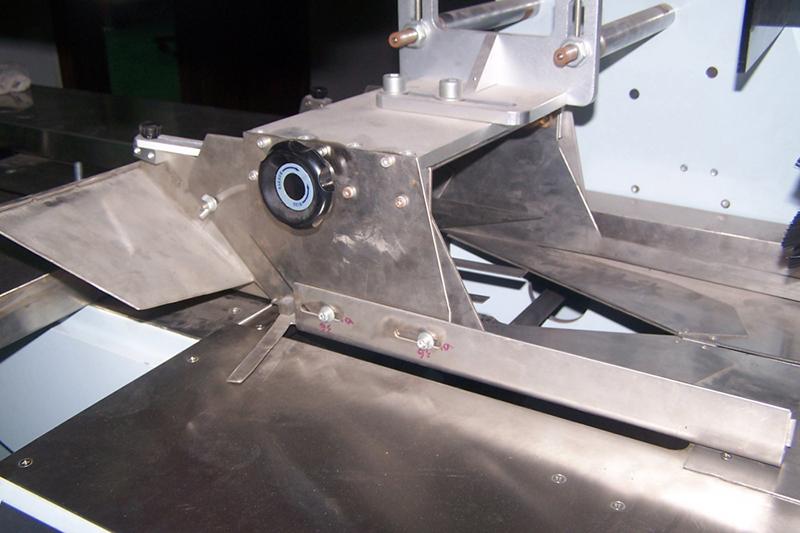

Bag forming unit

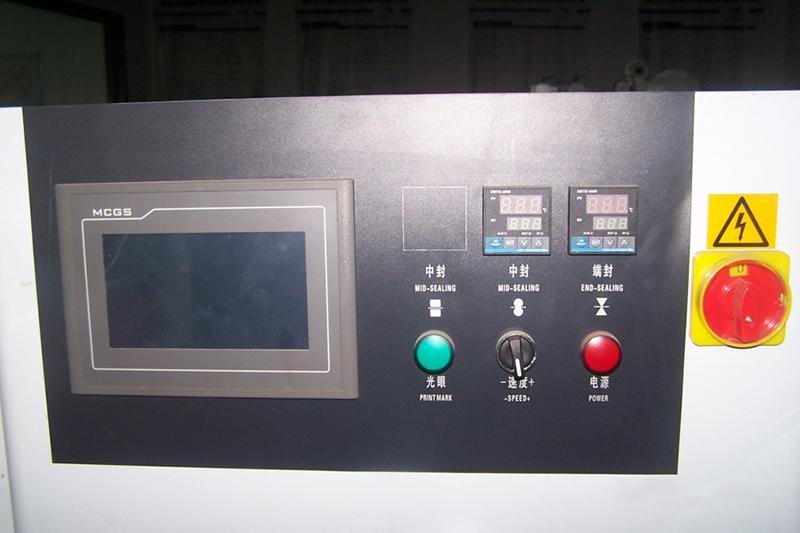

Touch screen
Features
Adjustable bag former to accommodate various product dimensions.
Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use KCH-450W Horizontal flow wrapper controller.
Independent temperature controllers for fin and end seals.
Options
304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
