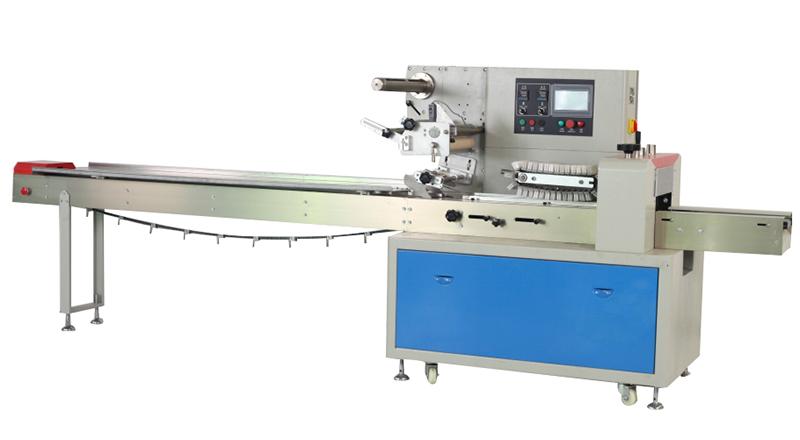

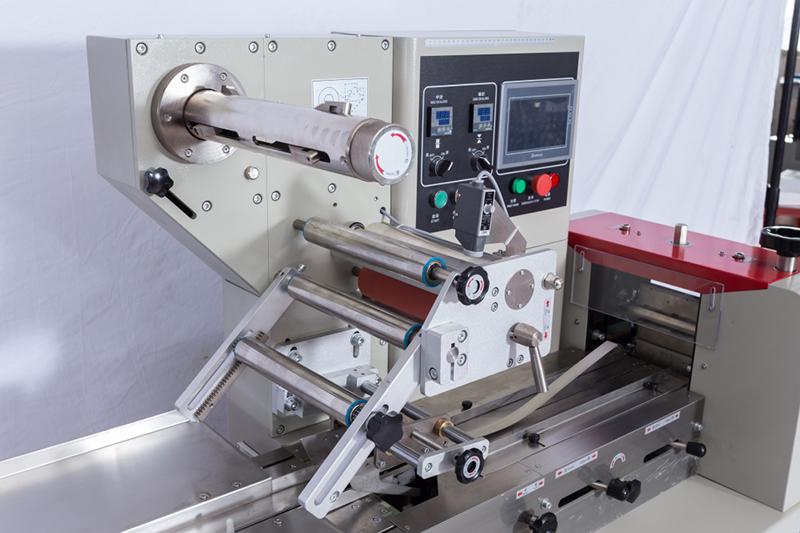

KCH-400D Horizontal flow wrapper

The KCH-400D Flow wrapper packaging machine can process film with a maximum width of 400mm and fin sealing bags with maximum widths of 190mm. This equipment is particularly suitable for materials that require relatively tall height.

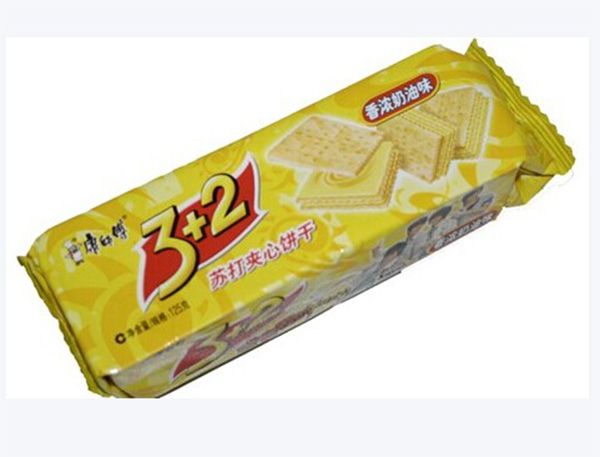

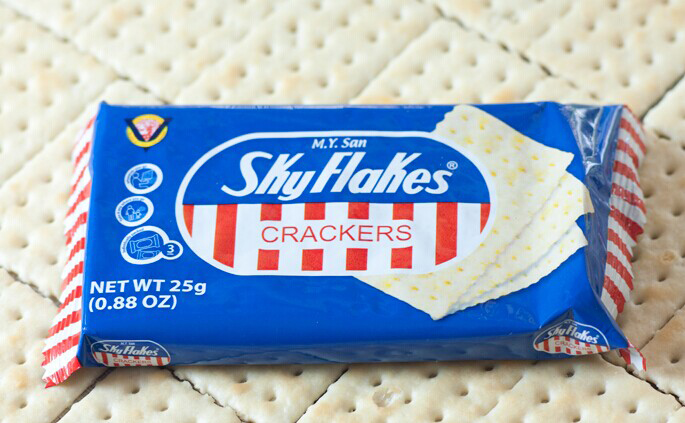

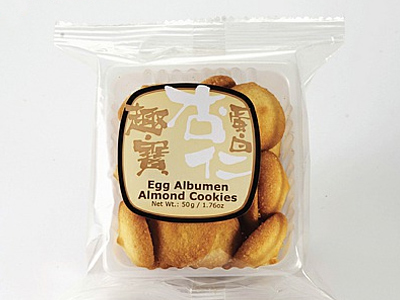

Bag types and samples
  • KCH-400D Horizontal flow wrapper
  • KCH-400D Horizontal flow wrapper
  • KCH-400D Horizontal flow wrapper
  • KCH-400D Horizontal flow wrapperPillow bag
  • KCH-400D Horizontal flow wrapperPillow bag with euro hole
  • KCH-400D Horizontal flow wrapperPillow bag with round hole
  • KCH-400D Horizontal flow wrapperStick seal bag
  • KCH-400D Horizontal flow wrapperLinking bag
Specification
Model KCH-400D
Film width Max. 400mm
Bag length 150-400mm
Bag width 30-190mm
Product height Max.80mm
Film diameter Max. 320mm
Packing speed 40-1800 packages / min
Machine dimensions (L)4020X(W)800X(H)450mm
Machine quality 400kg

Details

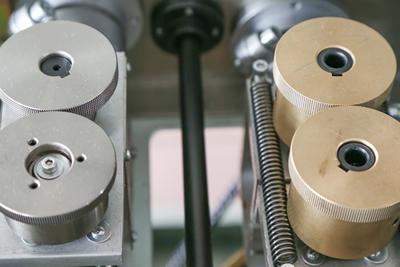

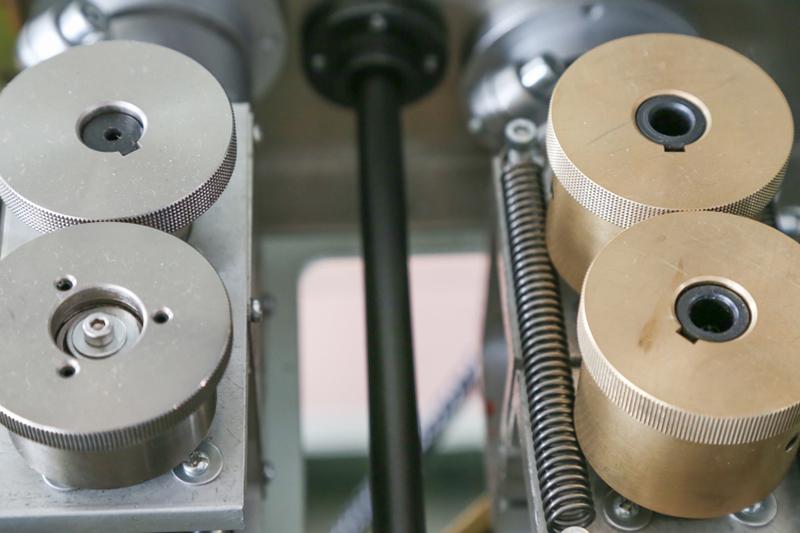

The wrapping machine is equipped with an independently designed wheeled heat sealing device, which ensures a complete sealing performance, even when using packaging material like CPP packaging film.

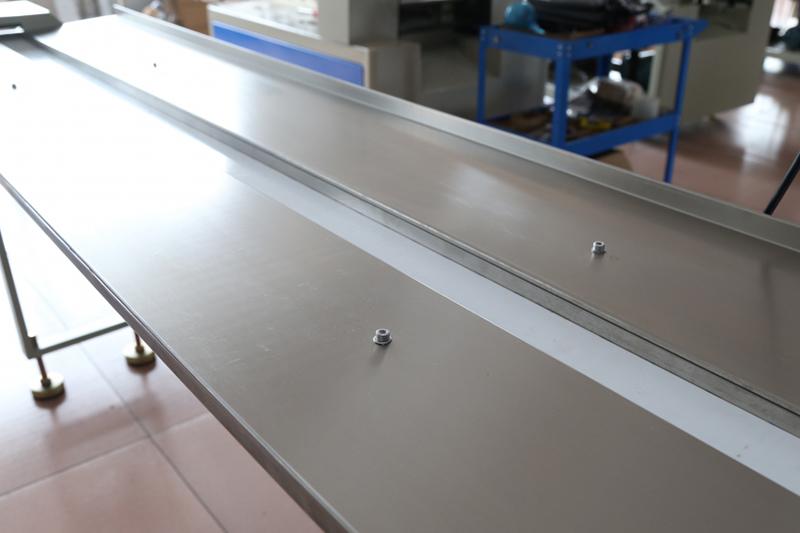

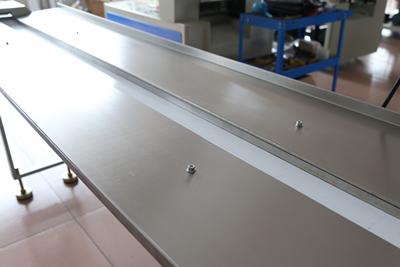

The conveyor of the pillow packaging machine is made of 304 stainless steel, making it stable, healthy and safe to use.

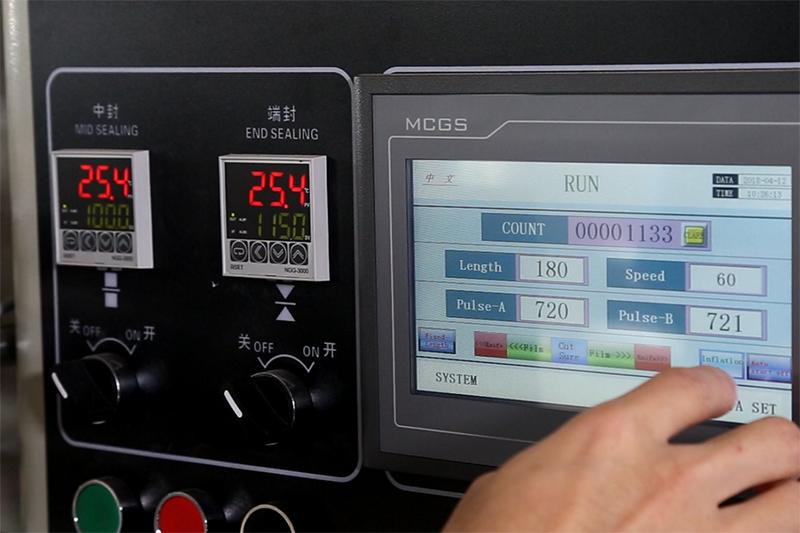

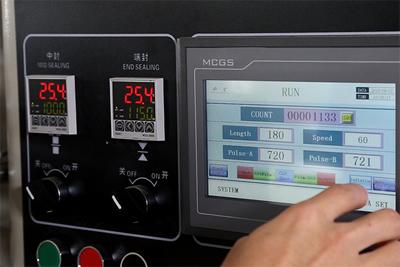

The large touch screen features clear parameters, and it is easy to set parameters.

The packaging machine is equipped with an ink roll coding machine to print dates, marks and other items in a complete, clear process.

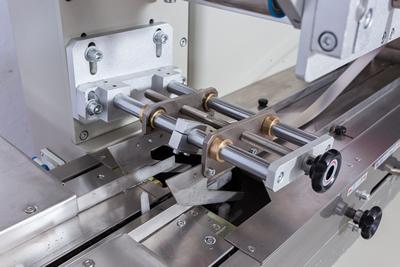

The flow-pack wrapper is equipped with telescopic film placing device, with a maximum film width of 400mm and a maximum film diameter of 350mm.

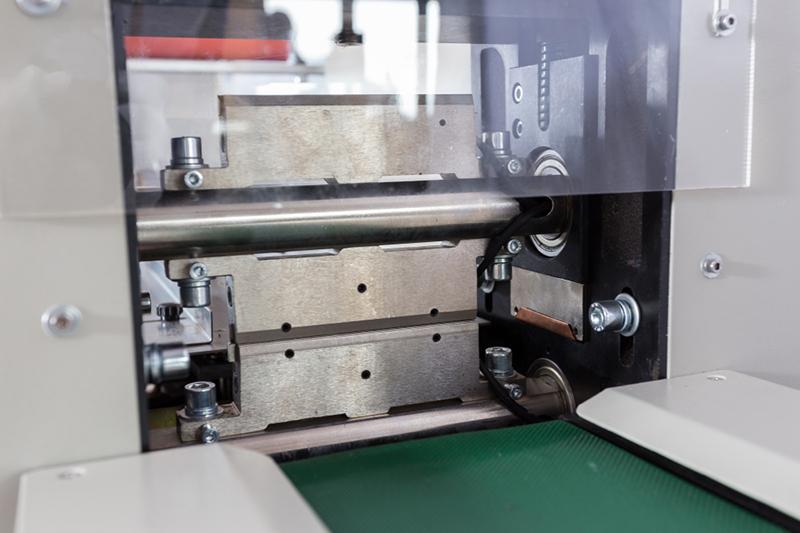

The film wrapping machine is equipped with a highly sensitive sensor to achieve location and cutting off, thus the bag length error is within 2mm. If the blade gets stuck, it will automatically, immediately reverse to protect the mold.

Features
  • Adjustable bag former to accommodate various product dimensions.
  • Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
  • The feeding conveyor features an adjustable width for various product dimensions.
  • Rotating jaw sealing head with maximum flexibility.
  • Dual fin seal wheels.
  • Safety covers to prevent operator access to moving parts.
  • Easy to use touch screen controller.
  • Independent temperature controllers for fin and end seals.
Options
  • 304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
  • The end sealing can be completed with a box motion head or the rotary jaw head.
  • Hot stamp printing for date codes
  • Gas flush device for modified atmosphere packaging
  • Extended feeding conveyor
  • Auto feeding system
  • Additional reel holder
  • Gusseting device

Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
