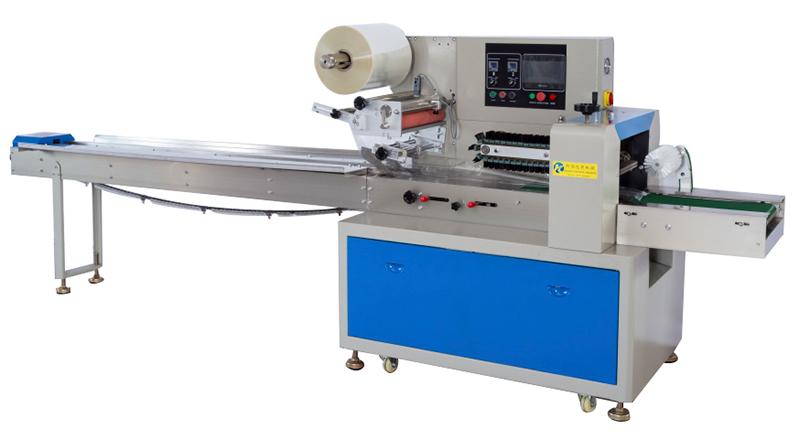

KCH-450D Horizontal flow wrapper

KCH-450D Horizontal flow wrapper

The KCH-450D flow wrapper packaging machine is compatible with a maximum of 450mm wide film to produce pillow shaped bags with lengths ranging from 130-450mm and widths from 50-180mm. The machinery is perfect for packing regularly shaped products such as biscuits, cookies, noodles, napkins, and bread.

Bag types and samples

Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag

Specification

Model	KCH-450D
Film width	Max. 450mm
Bag length	130-450mm
Bag width	50-180mm
Product height	Max.80mm
Film diameter	Max. 320mm
Packing speed	30-180bag/min
Power supply	220V, 50/60HZ, 2.6KVA
Machine size	(L) 820 * (W)4020 * (H) 1450mm
Weight	450Kg

Details

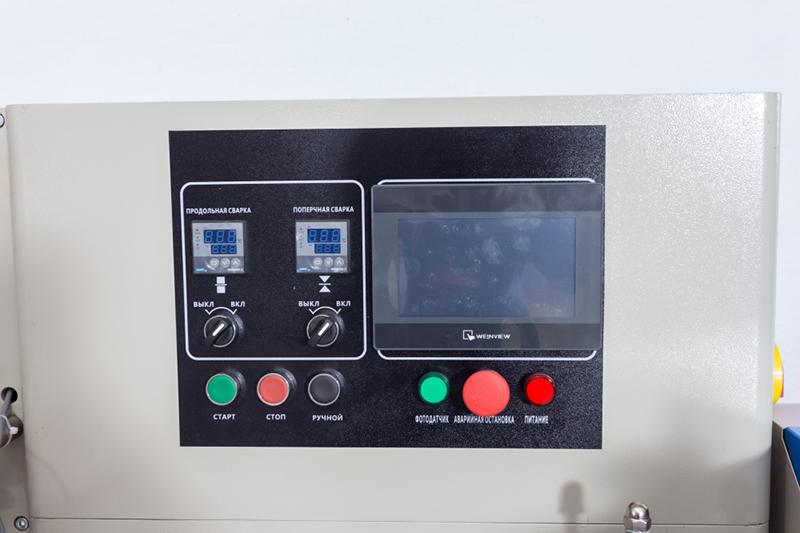

The 7-inch touch screen features clear parameters that are easy to set.

The bag forming unit can be freely adjusted, and offers various specifications without having to change the mold.

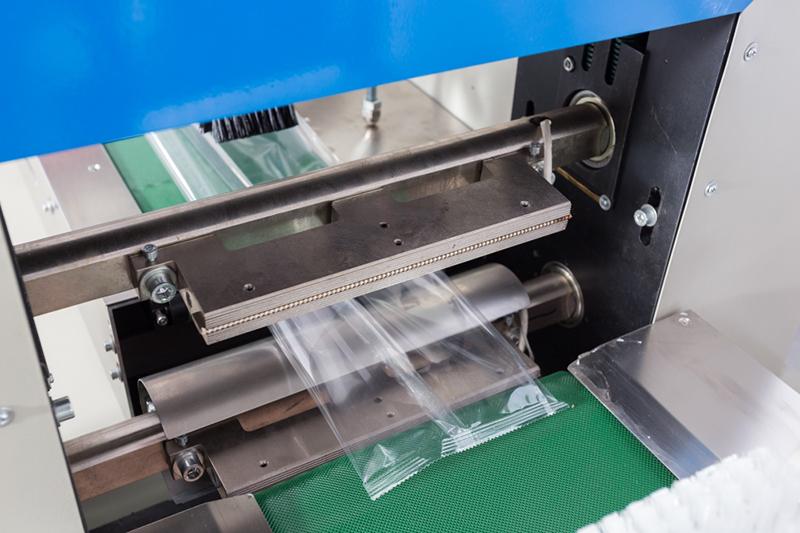

The flow-pack wrapper has the ability to locate and cut off without the film sticking to the blade, which not only prevents film waste, but also ensures the bag length error rate remains at 2mm, and saves money.

Features

Adjustable bag former to accommodate various product dimensions.

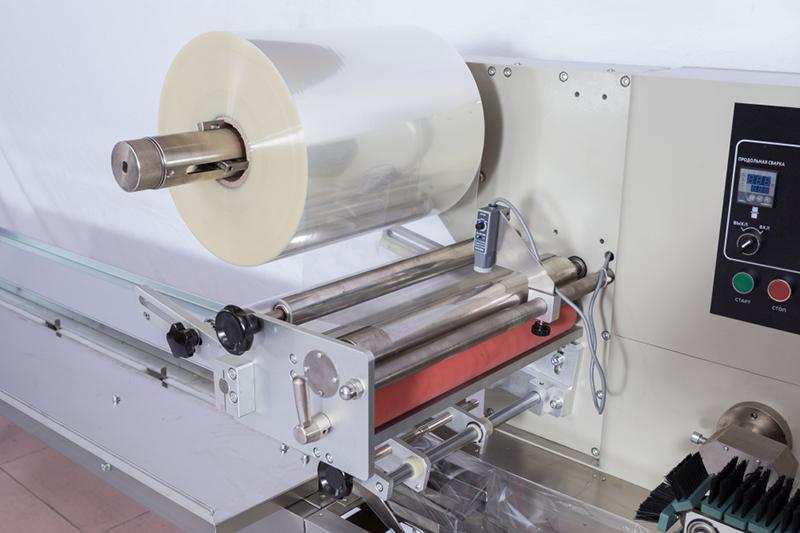

Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use touch screen controller.
Independent temperature controllers for fin and end seals.

Options

304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device
