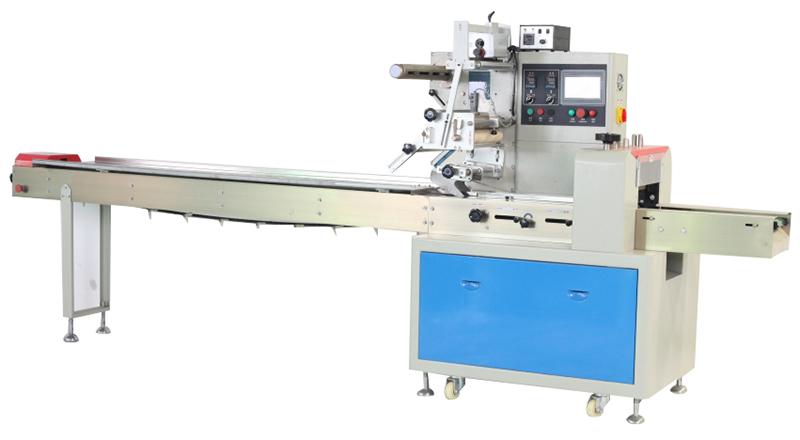

Horizontal flow wrapper, packing machine with gas flush device

The KCH-320B/320D horizontal flow wrapper packaging machine equipped with a gas flush device is especially suited for packaging baked goods, vegetables, and fruits to extend the shelf-life of these perishable products. Our machine packs the products with high efficiency, allowing you to meet productivity goals and reduce operating costs.

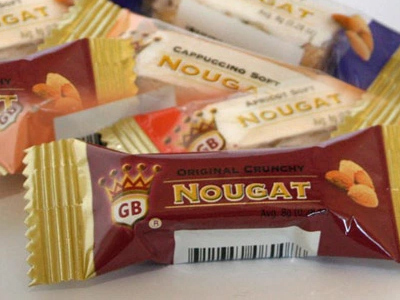

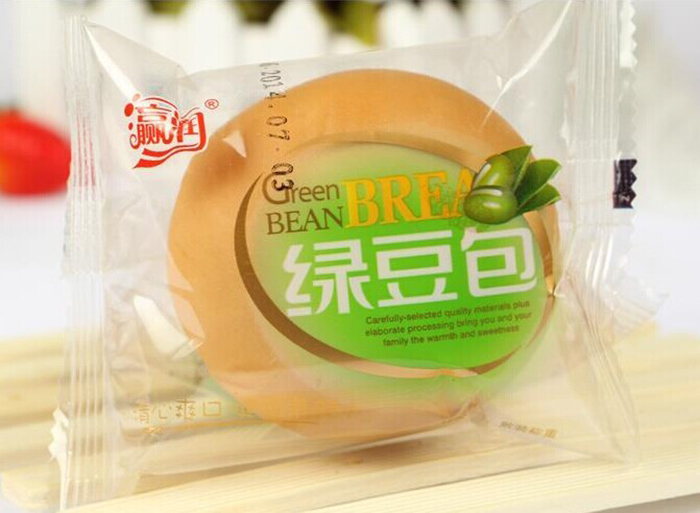

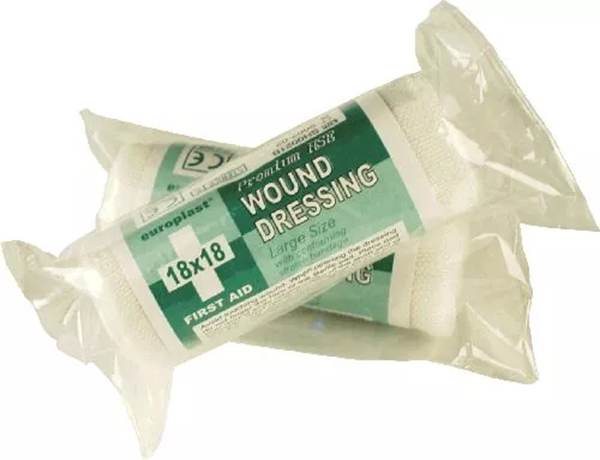

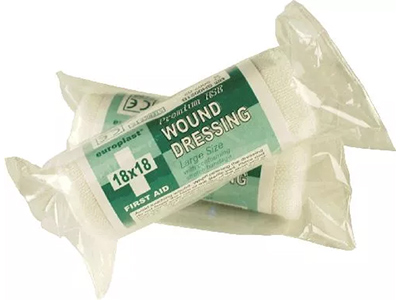

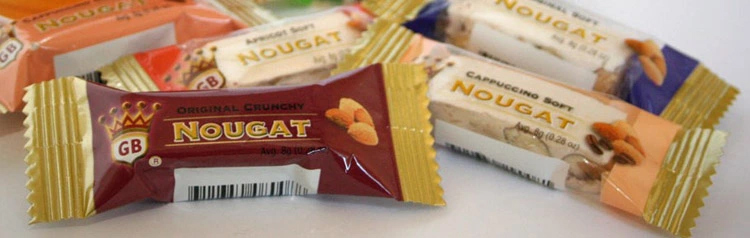

Bag types and samples
  • KCH-320B/320D Horizontal flow wrapper
  • KCH-320B/320D Horizontal flow wrapper
  • KCH-320B/320D Horizontal flow wrapper

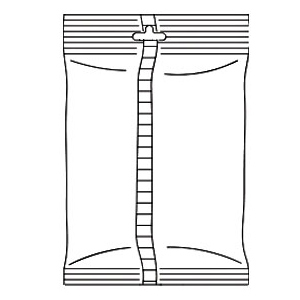

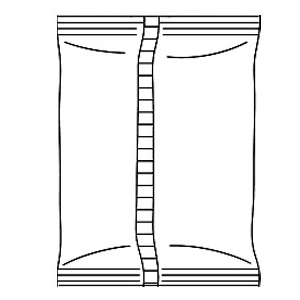

  • KCH-320B/320D Horizontal flow wrapperPillow bag
  • KCH-320B/320D Horizontal flow wrapperPillow bag with euro hole

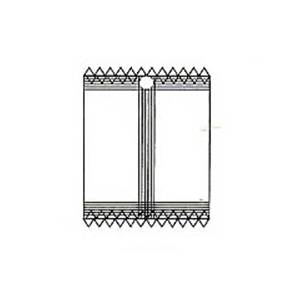

  • KCH-320B/320D Horizontal flow wrapperPillow bag with round hole

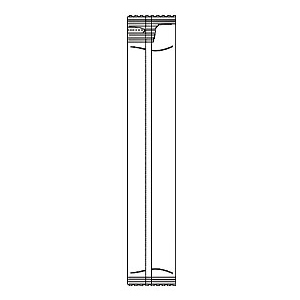

  • KCH-320B/320D Horizontal flow wrapperStick seal bag

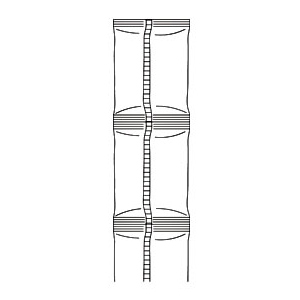

  • KCH-320B/320D Horizontal flow wrapperLinking bag
Specification
Model KCH-320B/320D
Film width Max. 320mm
Bag length 90-220mm or 150-330mm
Bag width 50-160mm
Product height Max.60mm
Film diameter Max. 320mm
Packing speed 40-230 packages / min
Power supply 220V, 50/60HZ, 2.6KVA
Machine dimensions (L) 3770* (W) 720* (H) 1450
Machine quality 400kg

Details

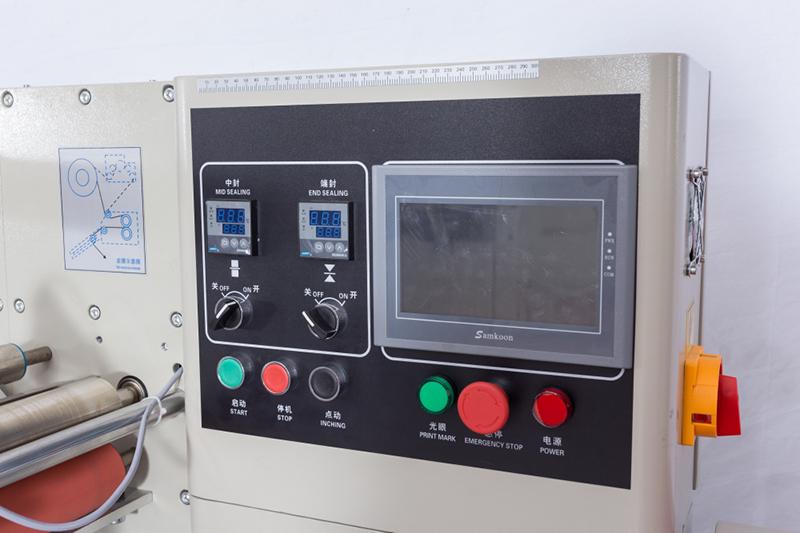

The 7-inch touch screen on the wrapping machine features clear parameters that are easy to set.

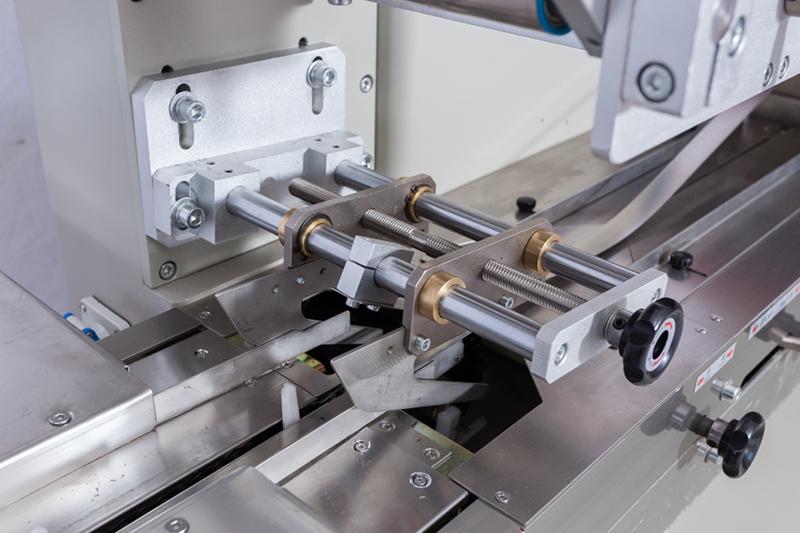

The bag forming unit of the flow-pack wrapper can be freely adjusted, offering users various specifications without having to change the mold.

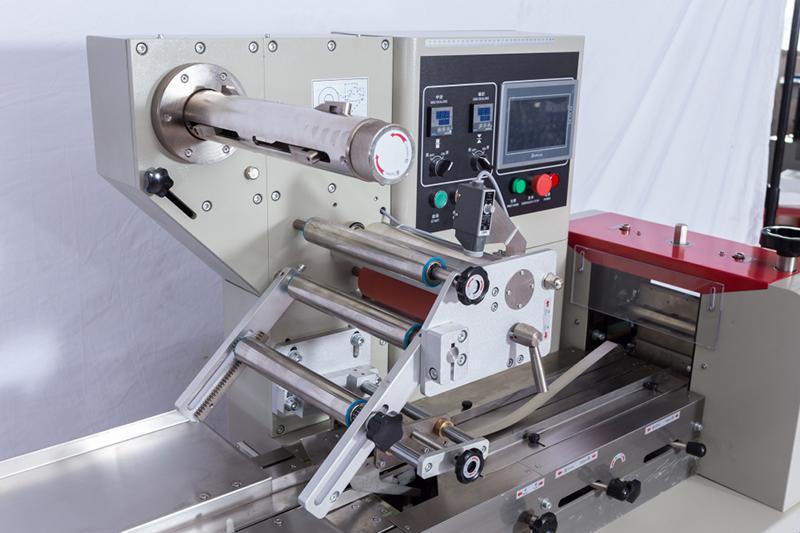

The flow-pack wrapper is equipped with an ink roll coding machine for printing dates, marks and other information, and a telescopic film placing device to stretch different packaging film sizes.

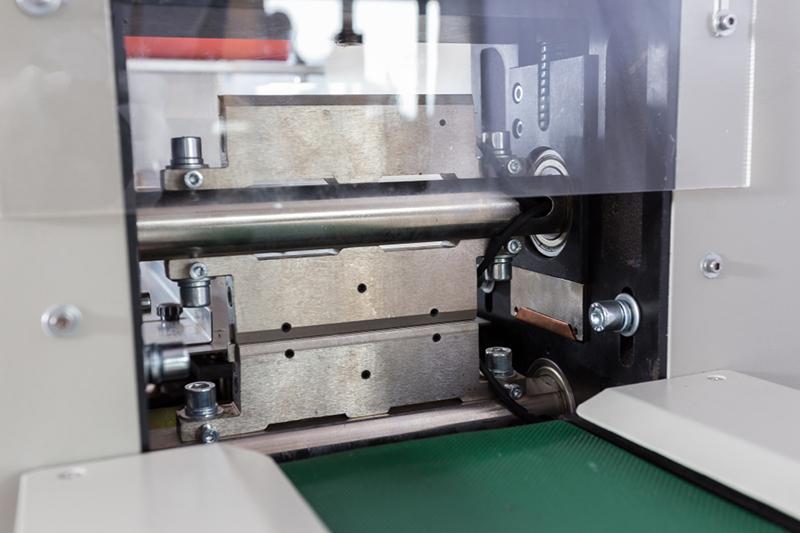

The flow-pack machine has the ability to locate and cut off with no film sticking to the blade, and features a high precision, thus, it will not waste packaging film and will save costs.

Features
  • Adjustable bag former to accommodate various product dimensions.
  • Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
  • The feeding conveyor features an adjustable width for various product dimensions.
  • Rotating jaw sealing head with maximum flexibility.
  • Dual fin seal wheels.
  • Safety covers to prevent operator access to moving parts.
  • Easy to use touch screen controller.
  • Independent temperature controllers for fin and end seals.
Options
  • 304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
  • The end sealing can be completed with a box motion head or the rotary jaw head.
  • Hot stamp printing for date codes
  • Gas flush device for modified atmosphere packaging
  • Extended feeding conveyor
  • Auto feeding system
  • Additional reel holder
  • Gusseting device

Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
