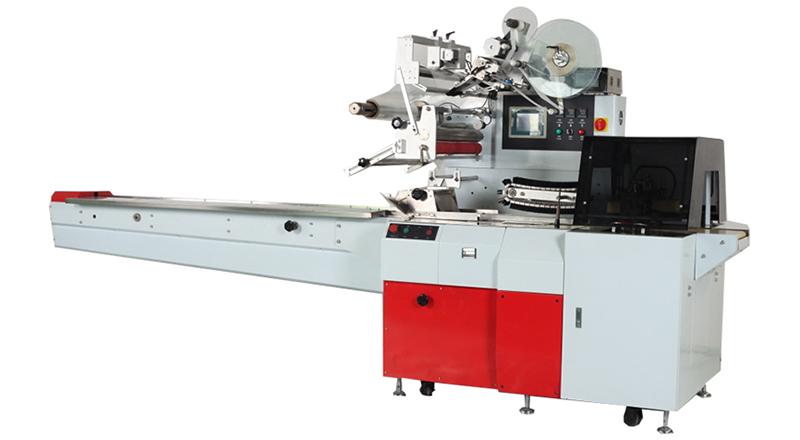

KCH-600D Horizontal flow wrapper

KCH-600D Horizontal flow wrapper

The KCH-600D flow wrapper packaging machine is compatible with film with a maximum width of 600mm to produce pillow type bags with lengths ranging from 130-450mm and widths from 50-280mm. The machine is designed to pack large volume products. We can also offer more options, contact us to learn more.

Bag types and samples

Pillow bag
Pillow bag with euro hole
Pillow bag with round hole
Stick seal bag
Linking bag

Specification

Model	KCH-600D
Film width	Max. 600mm
Bag length	130-450mm
Bag width	50-280mm
Product height	Max.120mm
Film diameter	Max. 320mm
Packing speed	30-180bag/min
Power supply	220V, 50/60HZ, 2.6KVA
Machine size	(L) 820 * (W)4020 * (H) 1450mm
Weight	450Kg

Details

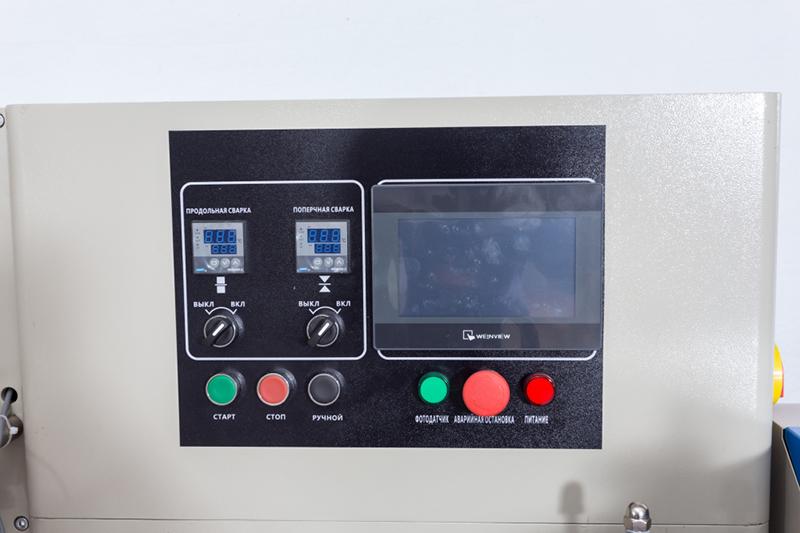

The 7-inch touch screen offers clear and easy to set parameters.

The bag forming unit can be freely adjusted, offering various specifications without having to change the mold.

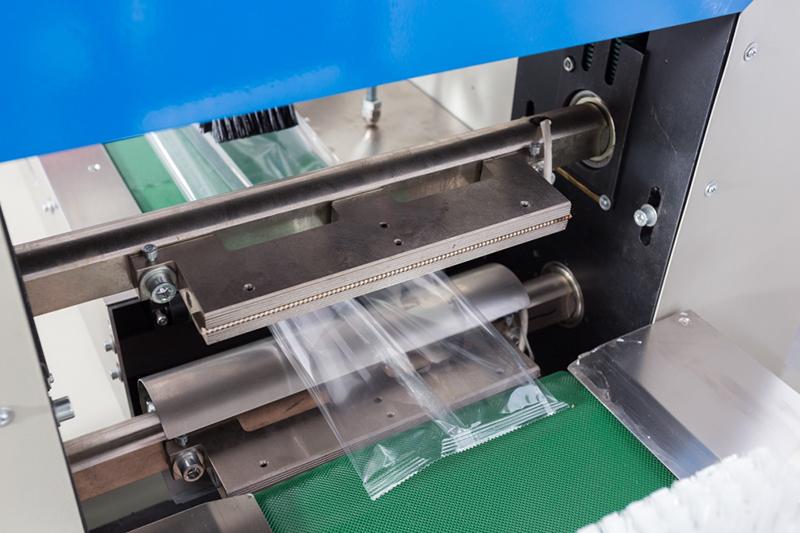

The flow-pack wrapper has the ability to locate and cut off without the film sticking to blade, thus saving film and retaining the bag length error to within a length of 2mm, saving money.

Features

Adjustable bag former to accommodate various product dimensions.

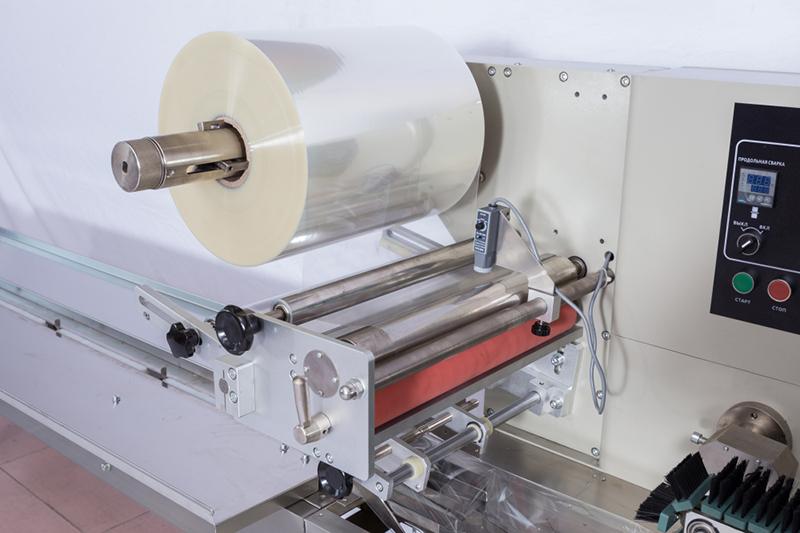

Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
The feeding conveyor features an adjustable width for various product dimensions.
Rotating jaw sealing head with maximum flexibility.
Dual fin seal wheels.
Safety covers to prevent operator access to moving parts.
Easy to use touch screen controller.
Independent temperature controllers for fin and end seals.

Options

304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
The end sealing can be completed with a box motion head or the rotary jaw head.
Hot stamp printing for date codes
Gas flush device for modified atmosphere packaging
Extended feeding conveyor
Auto feeding system
Additional reel holder
Gusseting device

Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
