KCH-250B/250D Horizontal flow wrapper

KCH-250B/250D Horizontal flow wrapper

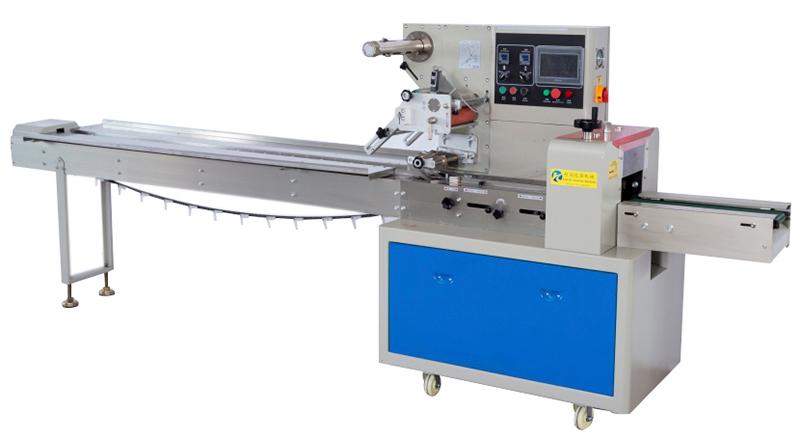

The KCH-250B/250D horizontal flow wrapper is a packing machine ideal for the individual wrapping of products. Some compatible products include candy bars, chocolate, brownies, buns, crackers, ice cream bars, popsicles, and even electronic and medical products.

304 stainless steel components are available for those involved in food and medicine production operations that have higher safety requirements. The wrapping equipment also provides high corrosion resistance, stable performance, and long service life.

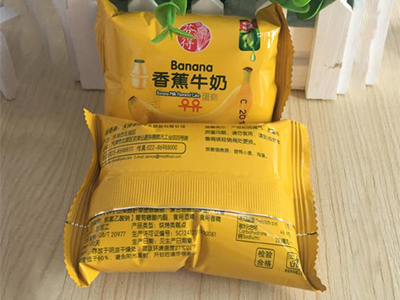

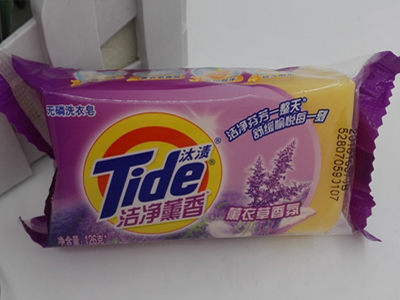

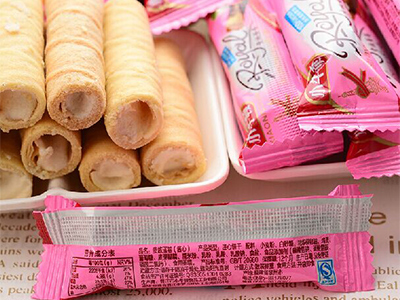

Bag types and samples
  • KCH-250B/250D Horizontal flow wrapper
  • KCH-250B/250D Horizontal flow wrapper
  • KCH-250B/250D Horizontal flow wrapper

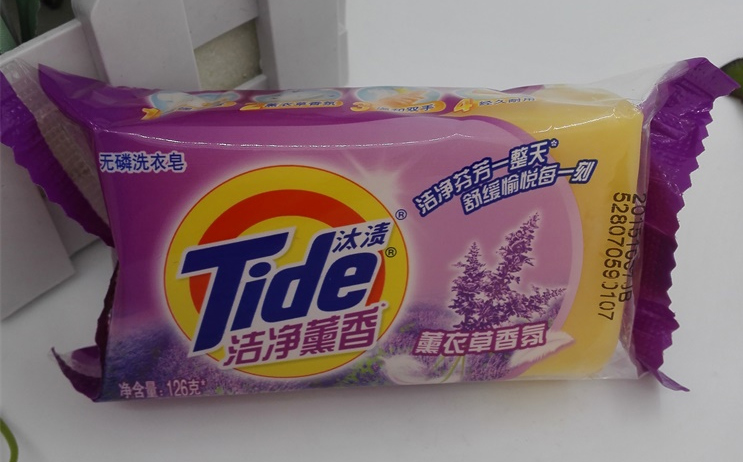

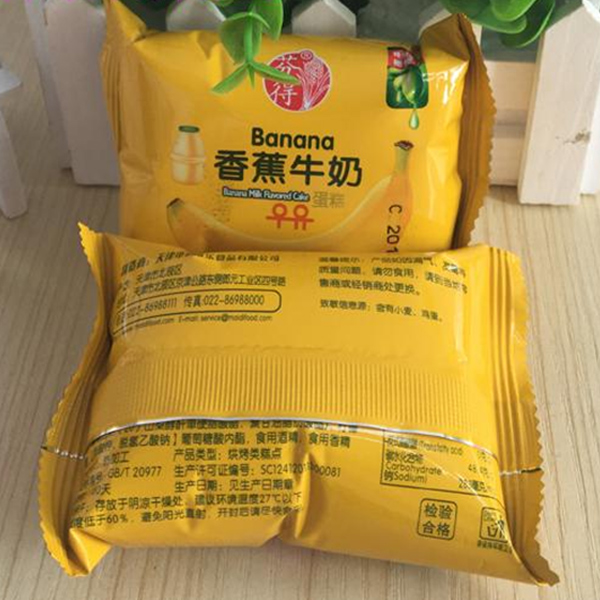

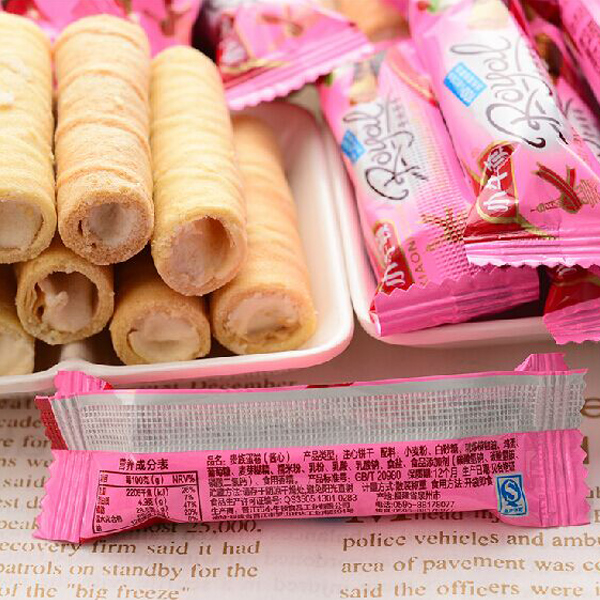

  • KCH-250B/250D Horizontal flow wrapperPillow bag
  • KCH-250B/250D Horizontal flow wrapperPillow bag with euro hole
  • KCH-250B/250D Horizontal flow wrapperPillow bag with round hole
  • KCH-250B/250D Horizontal flow wrapperStick seal bag
  • KCH-250B/250D Horizontal flow wrapperLinking bag
Specification
Model KCH-250B/250D
Film width Max.250mm
Bag length 45-90mm
Bag width 30~80mm
Product height Max.35mm
Film roll diameter Max.320mm
Packing speed 40~230 pack/minute
Size (L)3770*(W)670*(H)1450mm
Weight 400Kg

Details

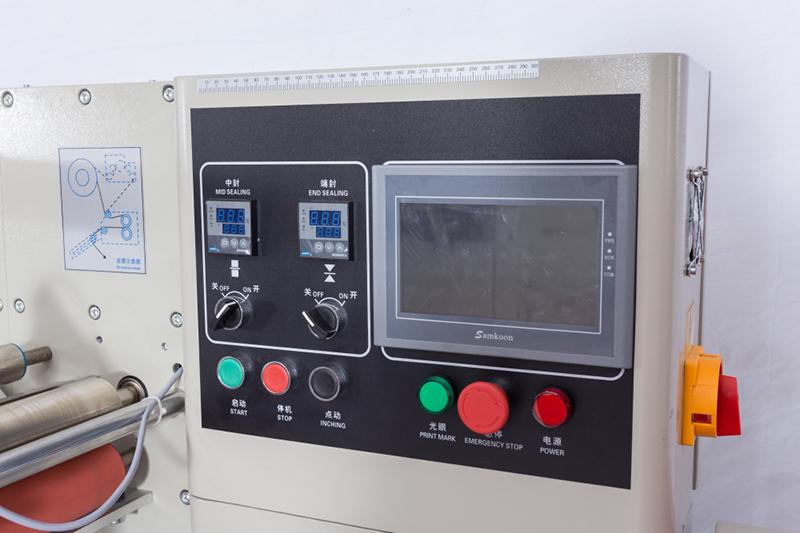

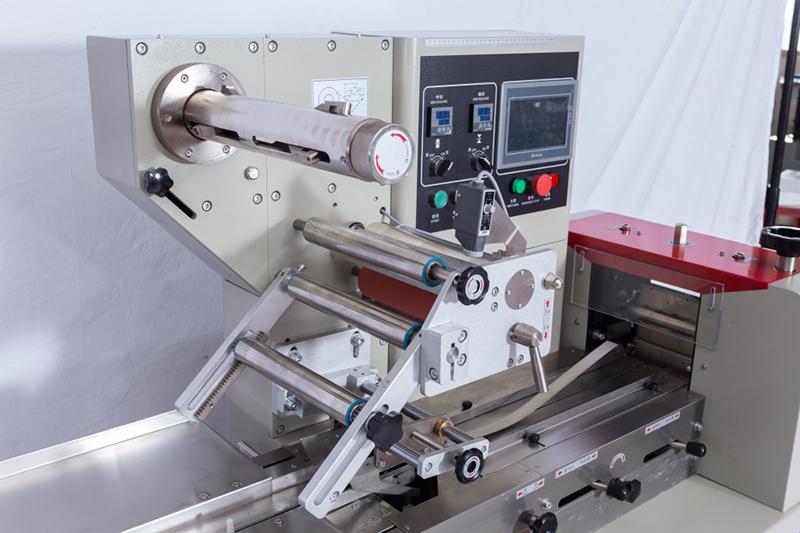

The 7-inch touch screen on the wrapping machine features clear parameters that are easy to set.

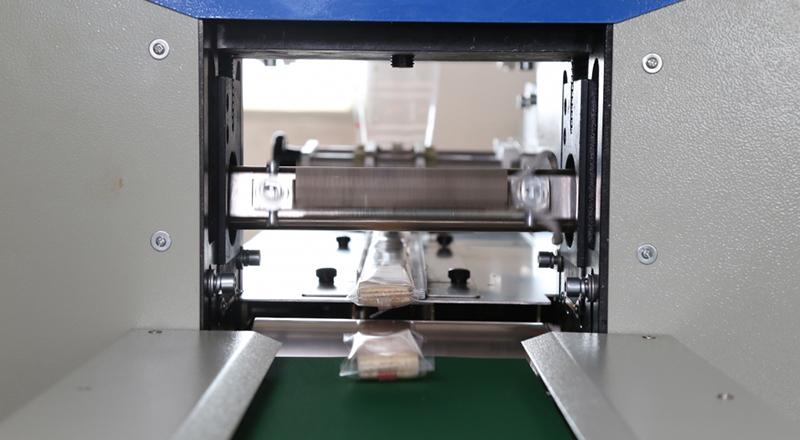

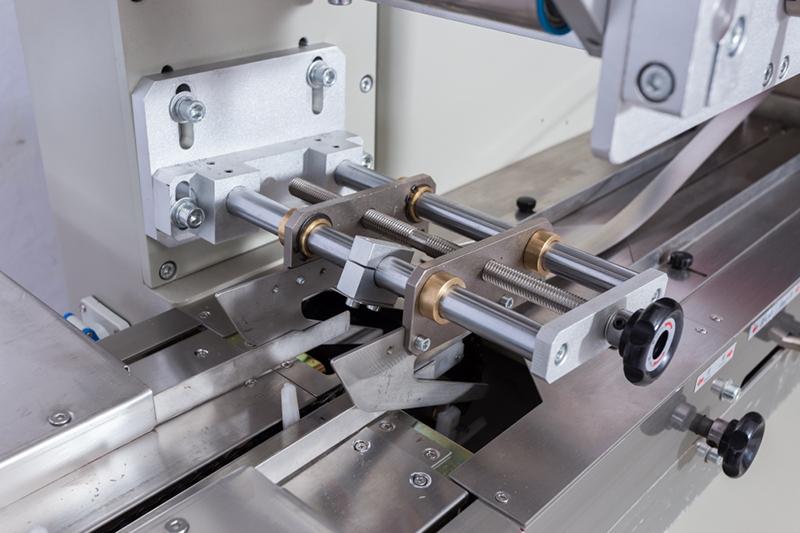

The bag forming unit of the flow-pack wrapper can be freely adjusted, offering users various specifications.

The flow-pack wrapper is equipped with an ink roll coding machine and telescopic film placing device.

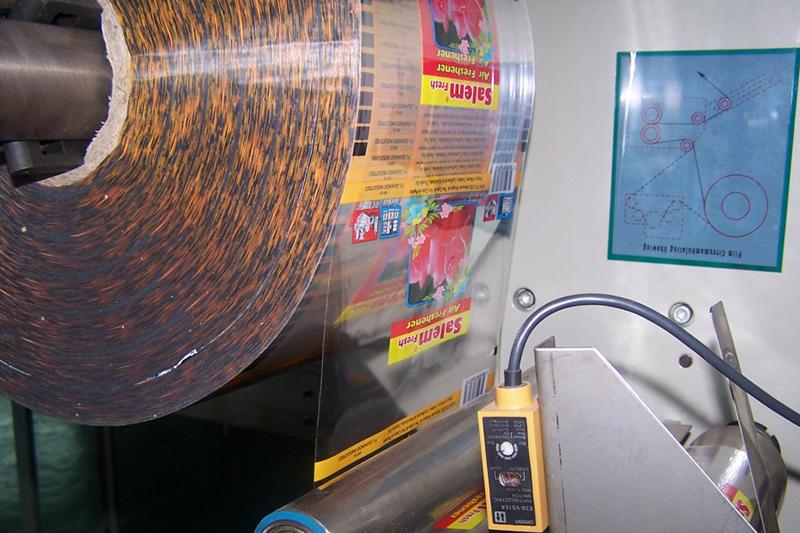

The packaging machine features a highly sensitive sensor that automatically tracks color standard positions, ensuring each position is accurate.

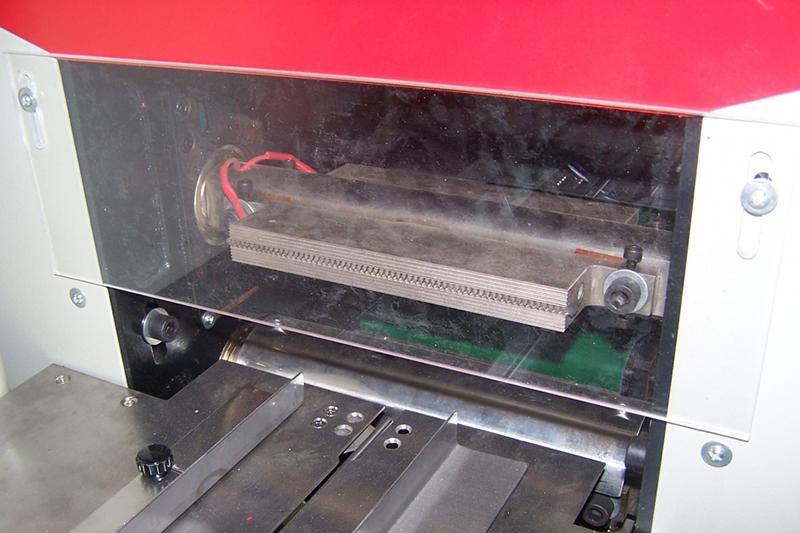

The flow-pack machine has the ability to locate and cut off with no film sticking to the blade. This saves packaging film usage, ensures a bag length error rate of less than 2mm, and reduces costs.

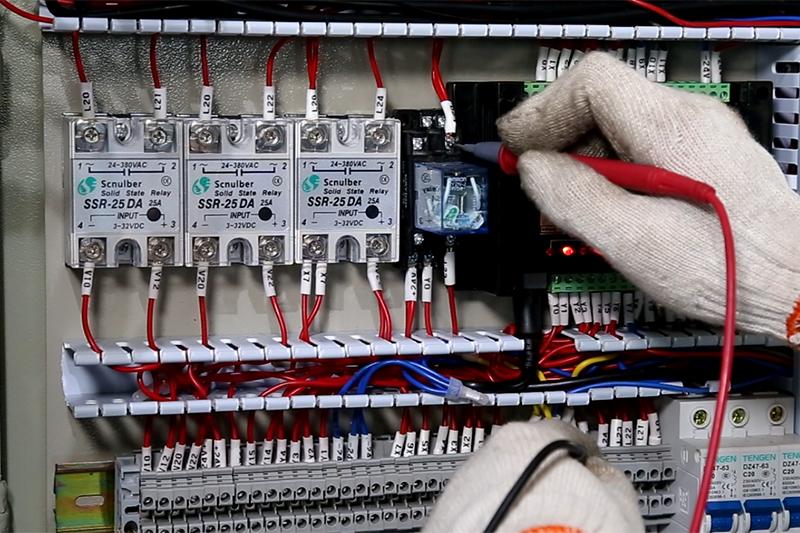

The wrapping machine uses a safe Panasonic PLC control system with a self-diagnosis function, meaning it will automatically stop operations in the event of any malfunctions.

Features
  • Adjustable bag former to accommodate various product dimensions.
  • Top film roll holder is adjustable for the easy centering of film and the braking system can stop the machine automatically when film runs out.
  • The feeding conveyor features an adjustable width for various product dimensions.
  • Rotating jaw sealing head with maximum flexibility.
  • Dual fin seal wheels.
  • Safety covers to prevent operator access to moving parts.
  • Easy to use touch screen controller.
  • Independent temperature controllers for fin and end seals.
Options
  • 304 stainless steel can be used for equipment parts, making it suitable for the food or medicine industry where hygiene standards are higher
  • The end sealing can be completed with a box motion head or the rotary jaw head.
  • Hot stamp printing for date codes
  • Gas flush device for modified atmosphere packaging
  • Extended feeding conveyor
  • Auto feeding system
  • Additional reel holder
  • Gusseting device

Foshan Kincon Packaging Machinery is a dependable manufacturer of high-quality packaging machines. We offer high-performance horizontal fill and seal packaging machines, vertical form fill and seal packing machines, counting and weighing systems, and complete automated packing lines.
